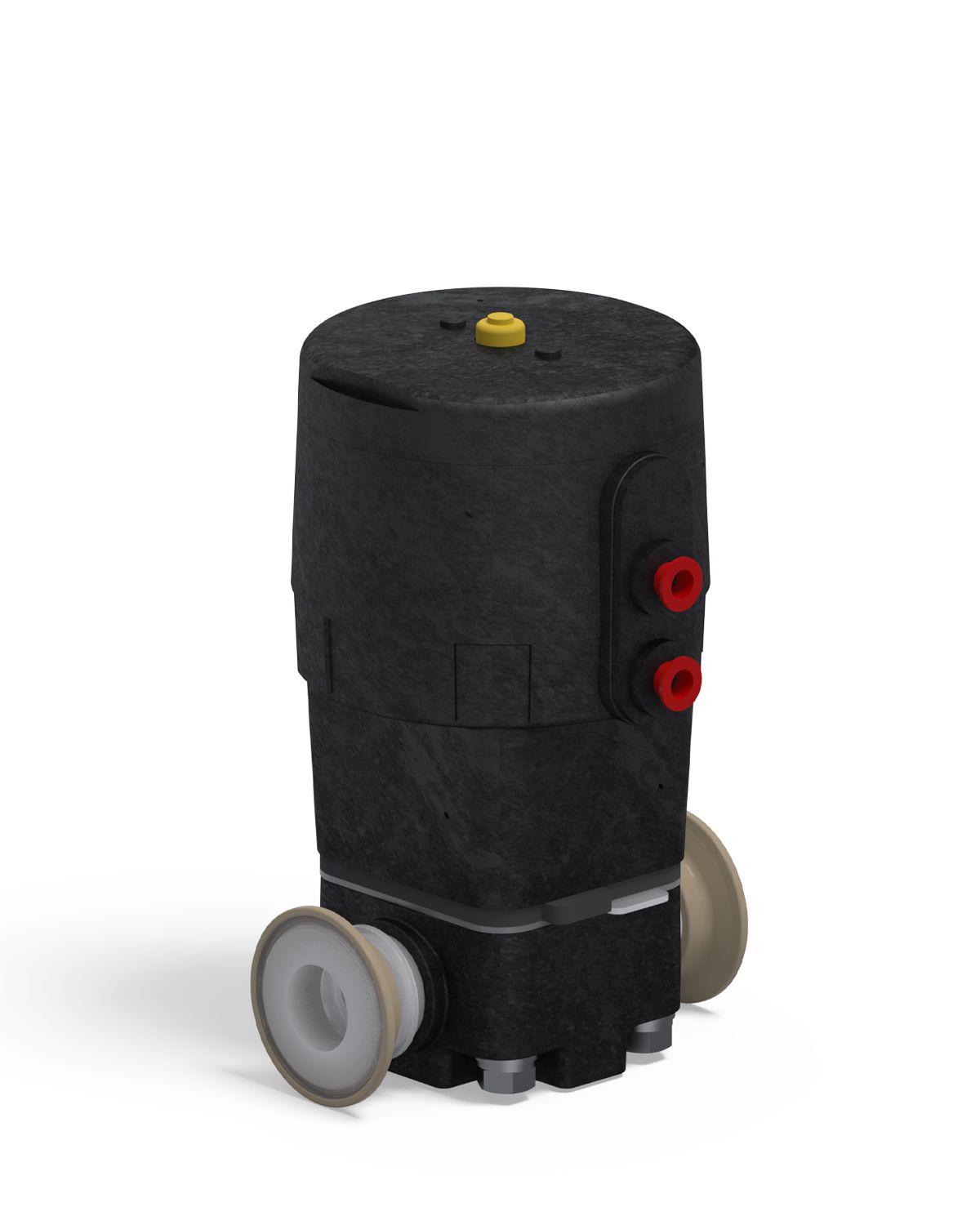

Cynergy® Pneumatic Valves, 1" Orifice, Sanitary Clamp and Beadless Weld

Download Image

Cynergy^® valves, with injection molded PFA bodies, transcend standard technology and efficiently handle your most demanding processes.

All product contact surfaces are manufactured from FDA approved materials that will never rouge or pit, and they comply with USP Class VI, USDA criteria, 3-A Sanitary Standards and cGMP standards
The inert, nonstick surfaces are easily cleaned, minimizing downtime, cross contamination and yield loss
Valves incorporate reliable Saunders diaphragms and PES EC actuator assemblies that provide maximum containment
Clamp valves adapt to existing equipment while beadless weld valves provide a leak-free, permanent installation

Read More Read Less

Specify Your Part

Actuator

Port Connection

Diaphragm Material

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly. Have an account? Sign In

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

(Optional) Comments

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Cynergy® Pneumatic Valves, 1" Orifice, Sanitary Clamp and Beadless Weld Applications

Utility line and process applications
Ideal in bioprocessing, biotechnology and fine chemicals applications using ultrapure water, corrosive chemistries and biotechniques

Specifications

Drawings

Part Number	Flow Factor C_V	Flow Factor K_V	Valve Type	Diaphragm	Port Connection	Dimension A
CW16-1-C-01-SA16	11.3	161.4	Normally open	PTFE/EPM	1" Cynergy clamp	4.80" (121.9 mm)
CW16-1-C-02-SA16	11.3	161.4	Normally open	PTFE/EPM steam grade	1" Cynergy clamp	4.80" (121.9 mm)
CW16-1-D-01-SA16	11.3	161.4	Normally closed	PTFE/EPM	1" Cynergy clamp	4.80" (121.9 mm)
CW16-1-D-02-SA16	11.3	161.4	Normally closed	PTFE/EPM steam grade	1" Cynergy clamp	4.80" (121.9 mm)
CW16-1-C-01-BW16	11.3	161.4	Normally open	PTFE/EPM	1" Cynergy weld	5.38" (136.7 mm)
CW16-1-C-02-BW16	11.3	161.4	Normally open	PTFE/EPM steam grade	1" Cynergy weld	5.38" (136.7 mm)
CW16-1-D-01-BW16	11.3	161.4	Normally closed	PTFE/EPM	1" Cynergy weld	5.38" (136.7 mm)
CW16-1-D-02-BW16	11.3	161.4	Normally closed	PTFE/EPM steam grade	1" Cynergy weld	5.38" (136.7 mm)

Product and Material Lot Traceability

Cynergy products made with Teflon^® PFA are coded with a lot number. This nondestructive, noncontaminating serial marking allows 100% traceability to a specific material lot, production date and production inspection record.

Injection molded products have a unique two-digit code molded into the body. This code changes with every production lot (see 3rd and 4th drawings above).

Teflon^® is a trademark of The Chemours Company FC, LLC used under license by Entegris, Inc.

Performance Data

Drainability
All Cynergy clamp or Cynergy welded ends are fully drainable at a 2% (1°) slope.

Autoclavability
Disassemble valves and unclamp connections before autoclaving. 124°C (255°F) is the maximum autoclave temperature.

Vacuum
Full static vacuum capability at 149°C (300°F).

Note: All Cynergy clamp or Cynergy welded ends are fully drainable at a 2% (1°) slope.

Product Specifications

Materials

All Cynergy products are made from specially chosen resins that meet industry needs for handling highly corrosive environments, saturated steam and cleaning chemicals.

All internal wetted surfaces are made from resins that comply with FDA regulation 21 CFR 177.1550 (perfluorocarbon resins as articles or components of articles intended for use in contact with food). These resins also comply with the criteria in 3-A Standards for Multiple-use Plastic Materials Used as Product Contact Surfaces for Dairy Equipment, Number 20-17, and USP Class VI Biologics Criteria.

External surfaces may also include PEEK and PES materials, high performance, FDA approved engineering grade polymers that are well suited to meet your application requirements.

For complete chemical compatibility and mechanical capabilities, refer to Section 1 of the Cynergy System Technical Guide.

Gasket and Clamp Recommendations

Laboratory testing of Cynergy clamp fittings shows performance reliability is dependent on the type of clamp and gasket used. Entegris strongly recommends the use of Tri-Clamp^® two-piece clamps for 1/4", 1/2" and 3/4" sizes, and Tri-Clamp three-piece clamps for 1", 1 1/2" and 2" sizes. Entegris also recommends the use of EPDM sanitary gaskets by Tri-Clover^® or Newman with our Cynergy clamp fittings. In-house testing has been performed on other high performance gasket materials with favorable results. Contact your local Entegris distributor or Entegris, Inc. for a recommendation.

Cynergy Clamp Connection Size	Rubber Fab Tuf-Flex^® PTFE/EPDM Gasket Number	Entegris Part Number for Tuf-Flex Gasket	Tri-Clover EPDM Gasket Part Number	Entegris EPDM Gasket Part Number	Tri-Clamp Clamp Part Number	Entegris Part Number for Tri-Clamp	Clamp Torque in•lbs (N•m)
1/4"	—	—	0-42MP-E-1/4¹	1333-022	13MHHS-3/4-S	01-008141	15 (1.7)
1/2"	A42MPGR-TF-050-E	01-1014718	42MP-E-1/2	01-008136	13MHHS-3/4-S	01-008141	15 (1.7)
3/4"	A42MPGR-TF-075-E	01-1014351	42MP-E-3/4	01-008137	13MHHS-3/4-S	01-008141	15 (1.7)
1"	A40MPGR-TF-100-E	01-034815	40MP-E-1	01-008138	13MHHS-1 1/2-S	01-008142	25 (2.8)
1 1/2"	A40MPGR-TF-150-E	01-034816	40MP-E-1 1/2	01-008139	13MHHS-1 1/2-S	01-008142	25 (2.8)
2"	A40MPGR-TF-200-E	01-034817	40MP-E-2	01-008140	13MHHS-2-S	01-008143	25 (2.8)

¹Newman EPDM Gasket Part Number

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Oct 1, 2012 Instruction Sheet Cynergy® Valve Diaphragm Replacement Instructions

86.2 kB

Published Apr 23, 2018 Instruction Sheet Cynergy® Valves Installation Procedure

634.1 kB

Published Jul 1, 2011 Catalog Cynergy® System Technical Guide

3.5 MB

Published Apr 1, 2012 Catalog Cynergy® System Product Catalog

6.3 MB

Part Numbers

Cynergy® Pneumatic Valves, 1" Orifice, Sanitary Clamp and Beadless Weld Part Numbers

Part Number	Actuator	Port Connection	Diaphragm Material
CW16-1-C-01-SA16	Normally open	1" Cynergy® clamp	PTFE/EPM
CW16-1-C-02-BW16	Normally open	1" Cynergy® weld	PTFE/EPM steam grade
CW16-1-D-01-BW16	Normally closed	1" Cynergy® weld	PTFE/EPM
CW16-1-D-01-SA16	Normally closed	1" Cynergy® clamp	PTFE/EPM
CW16-1-D-02-BW16	Normally closed	1" Cynergy® weld	PTFE/EPM steam grade
CW16-1-D-02-SA16	Normally closed	1" Cynergy® clamp	PTFE/EPM steam grade
