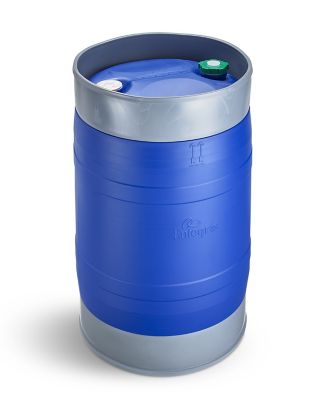

FluoroPure® PGI Advantage Trilayer HDPE Drum

Download Image

The physical strength of this drum enables you to safely transport large volumes of electronic-grade specialty chemicals in UN Packing Group I.

The unique semi-elliptical top and bottom design increases physical strength, enabling a high kPa rating and increased safety factor when transporting high vapor pressure chemicals
A low sump feature combined with the semi-elliptical design provides the greatest chemical retrieval of any HDPE drum on the market, minimizing residual and decreasing your cost of ownership
A wetted inner layer of the purest virgin HDPE material available enables you to better meet end user purity requirements
Fully UN approved for use with both Sentry^® QCIII and QCII quick connect systems
Approved for low pressure dispense (140 kPa) applications
UN tested and approved and in compliance for transporting Packing Group I chemicals
Suitable for use in semiconductor, life sciences, data storage, and LED markets

Read More Read Less

Interested in FluoroPure® PGI Advantage Trilayer HDPE Drum?

Contact your Entegris account manager or

To order the FluoroPure Advantage PGI Trilayer HDPE drum that meets your application needs, please refer to the Ordering Guide found in the Reference Material section at the bottom of this page.

Trilayer Advantages

We have invested in blowmolding technology to give you the highest purity HDPE drum currently available. In addition to having higher purity, lower trace metals and fewer particles than current HDPE drums, our drums feature:

Superior trace metal and particle performance
Designed for maximum retrievability with a unique sump that minimizes residual chemical
Single-piece design with molded in chime increases strength and closure protection
Bung opening maximizes drainage and eliminates the need for a separate drain port
The port sealing surface allows o-rings to provide closure seal
Pressure tested and assembled in Class 6 cleanroom to meet DOT requirements while ensuring a high purity package
Fully compatible with our patented Sentry^® quick connect systems - the industry accepted means for connecting the drum to a chemical distribution system
Accommodates standard Sentry drum insert length
Tamper evident covers are available

Top of page

Applications FluoroPure® PGI Advantage Trilayer HDPE Drum Applications

Designed to reduce your operating costs and improve the value of your chemical product, these HDPE drums are the first approved to transport UN Packing Group I chemicals with an approval of 320 kPa, including:

Chemicals like HCl and NH₄OH that require a higher kPa rating becasue of vapor pressure buildup
Most Group 1 chemicals with a specific gravity of 1.9
Bulk chemical delivery in pharmaceutical and biopharmaceutical applications

Note: Not recommended for vacuum conditions

Specifications

Drawings

Performance Data

Product Specifications

Materials of construction:	Body	Blowmolded multilayer high-density PE
	Chimes	Injection molded high-density PE
Pressure dispense maximum:	140 kPa
Dimensions:	584 mm (23.0") D x 953 mm (37.53") H
Tare Weight:	16.5 kg (36.5 lbs)
Size:	182 L (48 gal)
Approvals:	UN approved (1H1/X1.9/320/TW)
