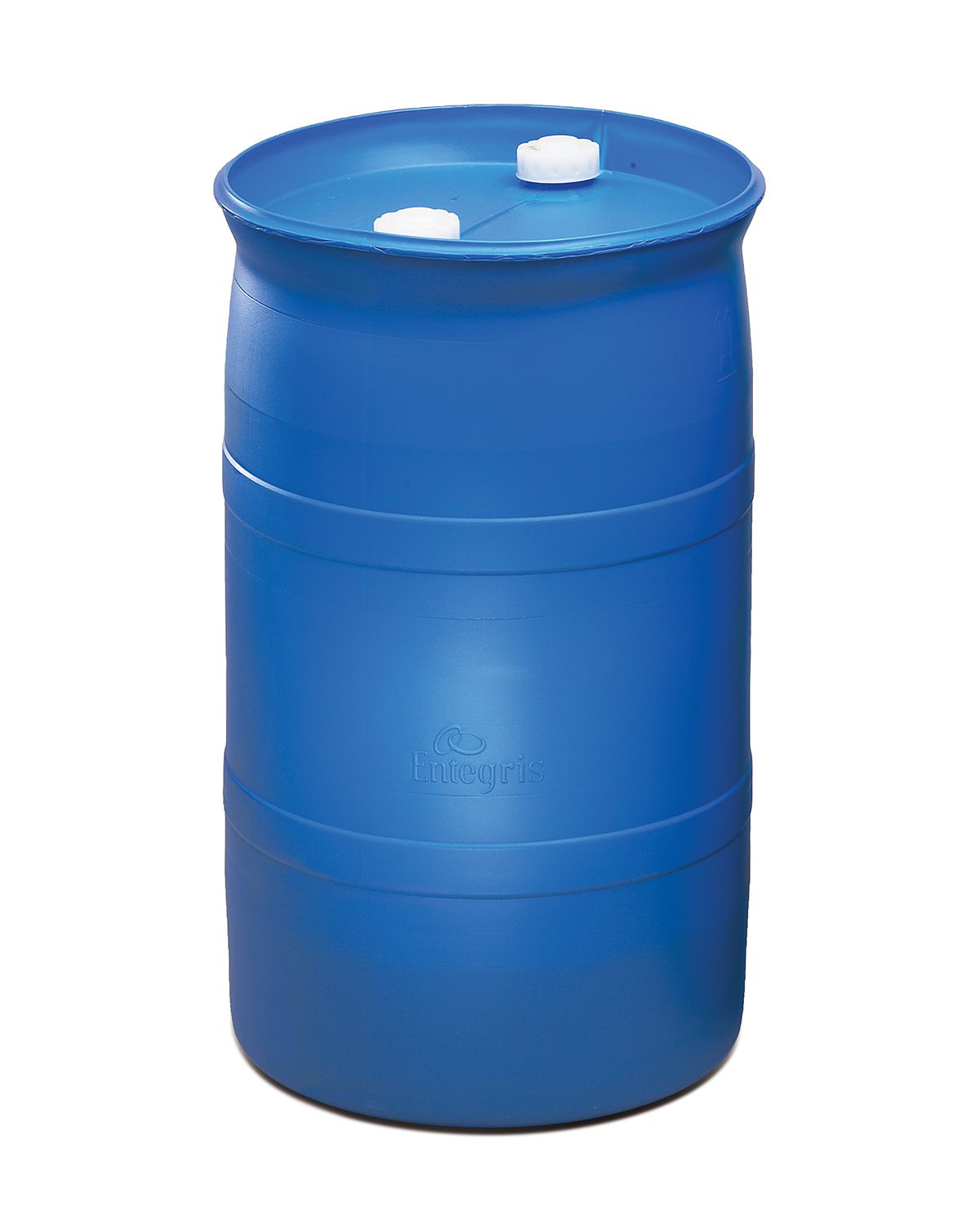

FluoroPure® Single-Use Trilayer HDPE Drums
Interested in FluoroPure® Single-Use Trilayer HDPE Drums?
Contact your Entegris account manager or
To order the Single-use FluoroPure Trilayer HDPE drum that meets your application needs, please refer to the Ordering Guide found in the Reference Material section at the bottom of this page.
Trilayer Advantages
We have invested in blowmolding technology to give you the highest purity HDPE drum currently available. In addition to having higher purity, lower trace metals and fewer particles than current HDPE drums, our drums feature:
- Superior trace metal performance
- Designed for maximum retrievability with a unique sump that minimizes residual chemical
- Single-piece design with molded in chime increases strength and closure protection
- Bung opening maximizes drainage and eliminates the need for a separate drain port
- The port sealing surface allows FEP encapsulated silicone o-rings to provide closure seal
- Pressure tested and assembled in Class 6 cleanroom to meet DOT requirements while ensuring a high purity package
- Incorporates our patented single-use fill and dispense Sentry® quick connect system
Top of page
Reference Materials
Applications
- The single-use drum is a cost-effective packaging solution for transporting electronic-grade chemicals one way, such as in overseas shipments and slurry applications
- Bulk chemical delivery in pharmaceutical and biopharmaceutical applications
Note: These drums are not recommended for pressure dispense or vacuum conditions.

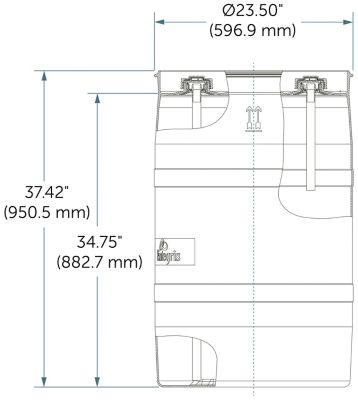

Specifications
| Drum | |
| Construction: | Blowmolded multilayer high density polyethylene |
| Size: | 200 liter (55 gallon) |
| Approval: | DOT/UN approved (1H1/Y2.0/170) |
| Tare weight: | 28.75 lbs (13.0 kg) |
| Drum Insert | |
| Material: | High density polyethylene |
| Fill and dispense port: | 1" Flaretek® flared connection |
