FluoroPure® Port Options
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Specifications

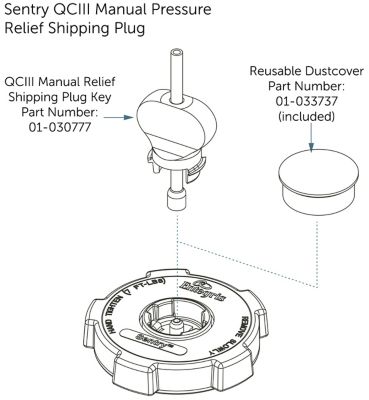

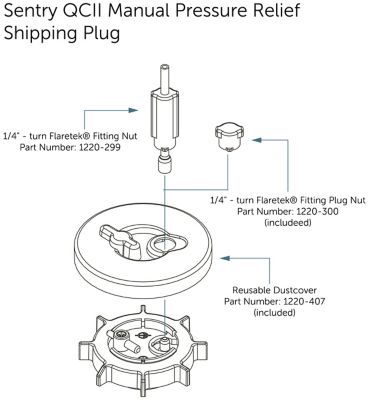

Manual Pressure Relief Shipping Plugs
| Part Number* | Closure | Color Code | O-ring |
| 151-133-XX | Sentry QCII | * | N/A |
| SC3MR-XX-0 | Sentry QCIII | * | FEP encapsulated Silicone |
| SC3MR-XX-1 | Sentry QCIII | * | FEP encapsulated FKM |
| SC3MR-XX-2 | Sentry QCIII | * | FEP encapsulated EPDM |
*XX = Natural (00), Red (01), Yellow (02), Green (03), Brown (04), Blue (05), Black (6)
Note: 1220-299 (QCII) and 01-030777 (QCIII) are sold separately.
Shipping Plugs
| Part Number* | Description | Closure | Color Code | O-ring |
| 153-266-XX | Complete standard | Sentry QCII | * | N/A |
| 153-266-XXV | Complete vented | Sentry QCII | * | N/A |
| 151-135-5 | 3/4" PE standard plug | Sentry QCII | N/A | N/A |
| 151-135-7 | 3/4" PE vent plug | Sentry QCII | N/A | N/A |
| SC3-XX-0 | Complete standard | Sentry QCIII | * | FEP encapsulated Silicone |
| SC3-XX-1 | Complete standard | Sentry QCIII | * | FEP encapsulated FKM |
| SC3-XX-2 | Complete standard | Sentry QCIII | * | FEP encapsulated EPDM |
| SC3V-XX-0 | Complete vented | Sentry QCIII | * | FEP encapsulated Silicone |
| SC3V-XX-1 | Complete vented | Sentry QCIII | * | FEP encapsulated FKM |
| SC3V-XX-2 | Complete vented | Sentry QCIII | * | FEP encapsulated EPDM |
*XX = Natural (00), Red (01), Yellow (02), Green (03), Brown (04), Blue (05), Black (6)
Bung and Vent Plugs
| Part Number | Description | Model/Closure |
| 151-16S | 2" PFA standard bung plug | PFA/PE composite drums |
| 151-131 | 2" PE standard bung plug | PE/PE composite drums |
| 151-131V | 2" PE vented bung plug | PE/PE composite drums |
| 151-135-5 | 3/4" PE standard plug | Sentry QCII |
| 151-135-7 | 3/4" PE vent plug | Sentry QCII |
| 151-145-1 | 2" PE standard bung plug | Trilayer HDPE drums |
| 151-145-1V | 2" PE vented bung plug | Trilayer HDPE drums |
Shipping Caps
| Part Number | Description | Model |
| 153-455-00 | Standard | Single-use Trilayer HDPE drum |
| 153-455-00V | Vented | Single-use Trilayer HDPE drum |
Materials
| Manual pressure relief shipping plug: | Valve body: | PTFE (QCII), PFA (QCIII) |
| Retaining ring: | Polyethylene | |
| Vented shipping plug: | Retaining ring: | Polyethylene |
| Shipping cap liner: | PFA | |
| Relief plug: | Polyethylene with expanded PTFE membrane | |
| Vented bung plug: | Plug housing: | Polyethylene |
| Relief plug: | Polyethylene with expanded PTFE membrane |
Operating Parameters
| Vented shipping and vented bung plug: | Vents vapor continuously to atmosphere |
