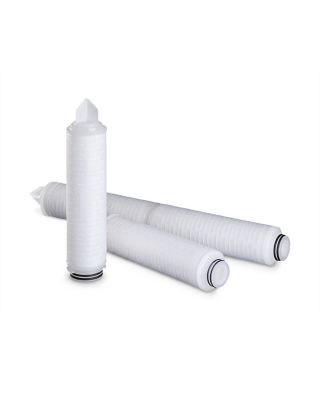

LEP Series PP Cartridge Filter
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Top of page
Reference Materials
Product Documentation
CAD
CAD Files
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
LEP Series PP Cartridge Filter Applications
- Electrolytic solution
- Inks
- Chemicals
- Facility water pre-filtration
- Security filtration for plant water system
- Cooling water filtration for systems
Specifications
Performance Data
Product Specifications
| Materials of construction | Filter media | Polypropylene |
| Support | Polypropylene | |
| Drainage | Polypropylene | |
| Core and cage | Polypropylene | |
| End caps | Polypropylene | |
| Dimensions | Diameter | 68 mm (2.67”) |
| Length | 10”, 20”, 30”, 40” | |
| Filtration area | ≥4.4ft2 (0.41 m2 )/10” | |
| Pore Size | 0.1, 0.2, 0.45, 1.0, 3.0, 5.0, 10, 20 μm | |
| Maximum Operating Temperature | <60°C (140°F) | |
| Maximum Forward Differential Pressure | 4.2 bar @ 23°C (60.9 psi @ 73.4°F) | |
| 1.5 bar @ 85°C (21.7 psi @ 185°F) | ||
Successfully Opted for software Updates
Part Numbers
LEP Series PP Cartridge Filter Part Numbers
-
Show Part Numbers Hide Part Numbers
