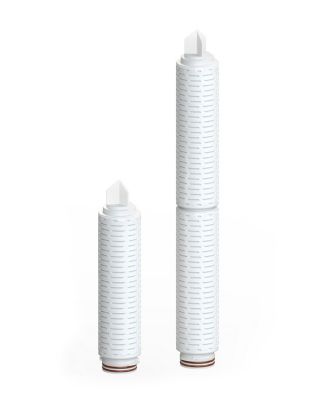

LPPF Series PP Cartridge Filter

Download Image

Provides higher throughput and better removal efficiency in pharmaceutical applications

Meets USP, 21 CFR and commission regulation for food contact materials, providing biosafety insurance and global regulatory compliance
Optimized form factor with progressively polypropylene (PP) materials, providing better throughput and higher particle removal efficiency in demanding liquid applications
All polypropylene construction creates excellent chemical compatibility, allowing use in a broad range of applications

Note: These filters are not available for North America and Europe. Please reach out to our specialists for other product recommendation for your applications.

Read More Read Less

Specify Your Part

Retention Rating

End Cap Configuration

Length

O-ring

Connector

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications LPPF Series PP Cartridge Filter Applications

Prefiltration for LVP/SVP production
Particle removal for API production
Clarification for vaccines

Specifications

Product Specifications

Materials of construction	Media	Polypropylene
	Support	Polypropylene
	Core and Cage	Polypropylene
	End Caps	Polypropylene or Polypropylene with stainless steel (SS) lining
	O-rings/Gasket	Silicone/EPDM (Other material on request)
	Sealing technology	Thermal bonding, no adhesives
Dimensions	Diameter	Ø68 mm
Dimensions	Length	5”, 10”, 20”, 30”, 40"
Filtration area	≥2.1 – 3.2 ft² per 10” cartridge
Retention rating	0.22, 0.45, 1.0, 5.0, 10 μm
Maximum differential pressure	Forward: 4.2 bar @ 25°C (77°F), 2.0 bar @ 60°C (140°F)
Multiple sterilization cycles	May be autoclaved for maximum 20 cycles at 127°C (261°F), 30 min
Multiple sterilization cycles	May be sanitized by hot water, maximum 30 cycles at 85°C (185°F)
Food contact material	All components meet the requirements of (EC) No 1935/2004
Indirect food additive	All components meet the FDA Indirect Food Additive requirements cited in 21 CFR 177-182
Quality	Manufactured in accordance with ISO 9001 and ISO 13485 certified quality management system

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Feb 14, 2025 Data Sheet LPPF Series PP Cartridge Filter

200.0 kB

Published Feb 14, 2025 Data Sheet LPPF Series PP Cartridge Filter - A4

200.1 kB

Part Numbers

LPPF Series PP Cartridge Filter Part Numbers

Show Part Numbers Hide Part Numbers

LPPF01KA05EA-A1	LPPF01KA05EB-A1	LPPF01KA05SA-A1	LPPF01KA05SB-A1	LPPF01KA10EA-A1
LPPF01KA10EB-A1	LPPF01KA10SA-A1	LPPF01KA10SB-A1	LPPF01KA20EA-A1	LPPF01KA20EB-A1
LPPF01KA20SA-A1	LPPF01KA20SB-A1	LPPF01KA30EA-A1	LPPF01KA30EB-A1	LPPF01KA30SA-A1
LPPF01KA30SB-A1	LPPF01KA40EA-A1	LPPF01KA40EB-A1	LPPF01KA40SA-A1	LPPF01KA40SB-A1
LPPF01KB05EA-A1	LPPF01KB05EB-A1	LPPF01KB05SA-A1	LPPF01KB05SB-A1	LPPF01KB10EA-A1
LPPF01KB10EB-A1	LPPF01KB10SA-A1	LPPF01KB10SB-A1	LPPF01KB20EA-A1	LPPF01KB20EB-A1
LPPF01KB20SA-A1	LPPF01KB20SB-A1	LPPF01KB30EA-A1	LPPF01KB30EB-A1	LPPF01KB30SA-A1
LPPF01KB30SB-A1	LPPF01KB40EA-A1	LPPF01KB40EB-A1	LPPF01KB40SA-A1	LPPF01KB40SB-A1
LPPF01KC05EA-A1	LPPF01KC05EB-A1	LPPF01KC05SA-A1	LPPF01KC05SB-A1	LPPF01KC10EA-A1
LPPF01KC10EB-A1	LPPF01KC10SA-A1	LPPF01KC10SB-A1	LPPF01KC20EA-A1	LPPF01KC20EB-A1
LPPF01KC20SA-A1	LPPF01KC20SB-A1	LPPF01KC30EA-A1	LPPF01KC30EB-A1	LPPF01KC30SA-A1
LPPF01KC30SB-A1	LPPF01KC40EA-A1	LPPF01KC40EB-A1	LPPF01KC40SA-A1	LPPF01KC40SB-A1
LPPF01KD05EA-A1	LPPF01KD05EB-A1	LPPF01KD05SA-A1	LPPF01KD05SB-A1	LPPF01KD10EA-A1
LPPF01KD10EB-A1	LPPF01KD10SA-A1	LPPF01KD10SB-A1	LPPF01KD20EA-A1	LPPF01KD20EB-A1
LPPF01KD20SA-A1	LPPF01KD20SB-A1	LPPF01KD30EA-A1	LPPF01KD30EB-A1	LPPF01KD30SA-A1
LPPF01KD30SB-A1	LPPF01KD40EA-A1	LPPF01KD40EB-A1	LPPF01KD40SA-A1	LPPF01KD40SB-A1
LPPF01KE05EA-A1	LPPF01KE05EB-A1	LPPF01KE05SA-A1	LPPF01KE05SB-A1	LPPF01KE10EA-A1
LPPF01KE10EB-A1	LPPF01KE10SA-A1	LPPF01KE10SB-A1	LPPF01KE20EA-A1	LPPF01KE20EB-A1
LPPF01KE20SA-A1	LPPF01KE20SB-A1	LPPF01KE30EA-A1	LPPF01KE30EB-A1	LPPF01KE30SA-A1
LPPF01KE30SB-A1	LPPF01KE40EA-A1	LPPF01KE40EB-A1	LPPF01KE40SA-A1	LPPF01KE40SB-A1
LPPF022A05EA-A1	LPPF022A05EB-A1	LPPF022A05SA-A1	LPPF022A05SB-A1	LPPF022A10EA-A1
LPPF022A10EB-A1	LPPF022A10SA-A1	LPPF022A10SB-A1	LPPF022A20EA-A1	LPPF022A20EB-A1
LPPF022A20SA-A1	LPPF022A20SB-A1	LPPF022A30EA-A1	LPPF022A30EB-A1	LPPF022A30SA-A1
LPPF022A30SB-A1	LPPF022A40EA-A1	LPPF022A40EB-A1	LPPF022A40SA-A1	LPPF022A40SB-A1
LPPF022B05EA-A1	LPPF022B05EB-A1	LPPF022B05SA-A1	LPPF022B05SB-A1	LPPF022B10EA-A1
LPPF022B10EB-A1	LPPF022B10SA-A1	LPPF022B10SB-A1	LPPF022B20EA-A1	LPPF022B20EB-A1
LPPF022B20SA-A1	LPPF022B20SB-A1	LPPF022B30EA-A1	LPPF022B30EB-A1	LPPF022B30SA-A1
LPPF022B30SB-A1	LPPF022B40EA-A1	LPPF022B40EB-A1	LPPF022B40SA-A1	LPPF022B40SB-A1
LPPF022C05EA-A1	LPPF022C05EB-A1	LPPF022C05SA-A1	LPPF022C05SB-A1	LPPF022C10EA-A1
LPPF022C10EB-A1	LPPF022C10SA-A1	LPPF022C10SB-A1	LPPF022C20EA-A1	LPPF022C20EB-A1
LPPF022C20SA-A1	LPPF022C20SB-A1	LPPF022C30EA-A1	LPPF022C30EB-A1	LPPF022C30SA-A1
LPPF022C30SB-A1	LPPF022C40EA-A1	LPPF022C40EB-A1	LPPF022C40SA-A1	LPPF022C40SB-A1
LPPF022D05EA-A1	LPPF022D05EB-A1	LPPF022D05SA-A1	LPPF022D05SB-A1	LPPF022D10EA-A1
LPPF022D10EB-A1	LPPF022D10SA-A1	LPPF022D10SB-A1	LPPF022D20EA-A1	LPPF022D20EB-A1
LPPF022D20SA-A1	LPPF022D20SB-A1	LPPF022D30EA-A1	LPPF022D30EB-A1	LPPF022D30SA-A1
LPPF022D30SB-A1	LPPF022D40EA-A1	LPPF022D40EB-A1	LPPF022D40SA-A1	LPPF022D40SB-A1
LPPF022E05EA-A1	LPPF022E05EB-A1	LPPF022E05SA-A1	LPPF022E05SB-A1	LPPF022E10EA-A1
LPPF022E10EB-A1	LPPF022E10SA-A1	LPPF022E10SB-A1	LPPF022E20EA-A1	LPPF022E20EB-A1
LPPF022E20SA-A1	LPPF022E20SB-A1	LPPF022E30EA-A1	LPPF022E30EB-A1	LPPF022E30SA-A1
LPPF022E30SB-A1	LPPF022E40EA-A1	LPPF022E40EB-A1	LPPF022E40SA-A1	LPPF022E40SB-A1
LPPF045A05EA-A1	LPPF045A05EB-A1	LPPF045A05SA-A1	LPPF045A05SB-A1	LPPF045A10EA-A1
LPPF045A10EB-A1	LPPF045A10SA-A1	LPPF045A10SB-A1	LPPF045A20EA-A1	LPPF045A20EB-A1
LPPF045A20SA-A1	LPPF045A20SB-A1	LPPF045A30EA-A1	LPPF045A30EB-A1	LPPF045A30SA-A1
LPPF045A30SB-A1	LPPF045A40EA-A1	LPPF045A40EB-A1	LPPF045A40SA-A1	LPPF045A40SB-A1
LPPF045B05EA-A1	LPPF045B05EB-A1	LPPF045B05SA-A1	LPPF045B05SB-A1	LPPF045B10EA-A1
LPPF045B10EB-A1	LPPF045B10SA-A1	LPPF045B10SB-A1	LPPF045B20EA-A1	LPPF045B20EB-A1
LPPF045B20SA-A1	LPPF045B20SB-A1	LPPF045B30EA-A1	LPPF045B30EB-A1	LPPF045B30SA-A1
LPPF045B30SB-A1	LPPF045B40EA-A1	LPPF045B40EB-A1	LPPF045B40SA-A1	LPPF045B40SB-A1
LPPF045C05EA-A1	LPPF045C05EB-A1	LPPF045C05SA-A1	LPPF045C05SB-A1	LPPF045C10EA-A1
LPPF045C10EB-A1	LPPF045C10SA-A1	LPPF045C10SB-A1	LPPF045C20EA-A1	LPPF045C20EB-A1
LPPF045C20SA-A1	LPPF045C20SB-A1	LPPF045C30EA-A1	LPPF045C30EB-A1	LPPF045C30SA-A1
LPPF045C30SB-A1	LPPF045C40EA-A1	LPPF045C40EB-A1	LPPF045C40SA-A1	LPPF045C40SB-A1
LPPF045D05EA-A1	LPPF045D05EB-A1	LPPF045D05SA-A1	LPPF045D05SB-A1	LPPF045D10EA-A1
LPPF045D10EB-A1	LPPF045D10SA-A1	LPPF045D10SB-A1	LPPF045D20EA-A1	LPPF045D20EB-A1
LPPF045D20SA-A1	LPPF045D20SB-A1	LPPF045D30EA-A1	LPPF045D30EB-A1	LPPF045D30SA-A1
LPPF045D30SB-A1	LPPF045D40EA-A1	LPPF045D40EB-A1	LPPF045D40SA-A1	LPPF045D40SB-A1
LPPF045E05EA-A1	LPPF045E05EB-A1	LPPF045E05SA-A1	LPPF045E05SB-A1	LPPF045E10EA-A1
LPPF045E10EB-A1	LPPF045E10SA-A1	LPPF045E10SB-A1	LPPF045E20EA-A1	LPPF045E20EB-A1
LPPF045E20SA-A1	LPPF045E20SB-A1	LPPF045E30EA-A1	LPPF045E30EB-A1	LPPF045E30SA-A1
LPPF045E30SB-A1	LPPF045E40EA-A1	LPPF045E40EB-A1	LPPF045E40SA-A1	LPPF045E40SB-A1
LPPF100A05EA-A1	LPPF100A05EB-A1	LPPF100A05SA-A1	LPPF100A05SB-A1	LPPF100A10EA-A1
LPPF100A10EB-A1	LPPF100A10SA-A1	LPPF100A10SB-A1	LPPF100A20EA-A1	LPPF100A20EB-A1
LPPF100A20SA-A1	LPPF100A20SB-A1	LPPF100A30EA-A1	LPPF100A30EB-A1	LPPF100A30SA-A1
LPPF100A30SB-A1	LPPF100A40EA-A1	LPPF100A40EB-A1	LPPF100A40SA-A1	LPPF100A40SB-A1
LPPF100B05EA-A1	LPPF100B05EB-A1	LPPF100B05SA-A1	LPPF100B05SB-A1	LPPF100B10EA-A1
LPPF100B10EB-A1	LPPF100B10SA-A1	LPPF100B10SB-A1	LPPF100B20EA-A1	LPPF100B20EB-A1
LPPF100B20SA-A1	LPPF100B20SB-A1	LPPF100B30EA-A1	LPPF100B30EB-A1	LPPF100B30SA-A1
LPPF100B30SB-A1	LPPF100B40EA-A1	LPPF100B40EB-A1	LPPF100B40SA-A1	LPPF100B40SB-A1
LPPF100C05EA-A1	LPPF100C05EB-A1	LPPF100C05SA-A1	LPPF100C05SB-A1	LPPF100C10EA-A1
LPPF100C10EB-A1	LPPF100C10SA-A1	LPPF100C10SB-A1	LPPF100C20EA-A1	LPPF100C20EB-A1
LPPF100C20SA-A1	LPPF100C20SB-A1	LPPF100C30EA-A1	LPPF100C30EB-A1	LPPF100C30SA-A1
LPPF100C30SB-A1	LPPF100C40EA-A1	LPPF100C40EB-A1	LPPF100C40SA-A1	LPPF100C40SB-A1
LPPF100D05EA-A1	LPPF100D05EB-A1	LPPF100D05SA-A1	LPPF100D05SB-A1	LPPF100D10EA-A1
LPPF100D10EB-A1	LPPF100D10SA-A1	LPPF100D10SB-A1	LPPF100D20EA-A1	LPPF100D20EB-A1
LPPF100D20SA-A1	LPPF100D20SB-A1	LPPF100D30EA-A1	LPPF100D30EB-A1	LPPF100D30SA-A1
LPPF100D30SB-A1	LPPF100D40EA-A1	LPPF100D40EB-A1	LPPF100D40SA-A1	LPPF100D40SB-A1
LPPF100E05EA-A1	LPPF100E05EB-A1	LPPF100E05SA-A1	LPPF100E05SB-A1	LPPF100E10EA-A1
LPPF100E10EB-A1	LPPF100E10SA-A1	LPPF100E10SB-A1	LPPF100E20EA-A1	LPPF100E20EB-A1
LPPF100E20SA-A1	LPPF100E20SB-A1	LPPF100E30EA-A1	LPPF100E30EB-A1	LPPF100E30SA-A1
LPPF100E30SB-A1	LPPF100E40EA-A1	LPPF100E40EB-A1	LPPF100E40SA-A1	LPPF100E40SB-A1
LPPF500A05EA-A1	LPPF500A05EB-A1	LPPF500A05SA-A1	LPPF500A05SB-A1	LPPF500A10EA-A1
LPPF500A10EB-A1	LPPF500A10SA-A1	LPPF500A10SB-A1	LPPF500A20EA-A1	LPPF500A20EB-A1
LPPF500A20SA-A1	LPPF500A20SB-A1	LPPF500A30EA-A1	LPPF500A30EB-A1	LPPF500A30SA-A1
LPPF500A30SB-A1	LPPF500A40EA-A1	LPPF500A40EB-A1	LPPF500A40SA-A1	LPPF500A40SB-A1
LPPF500B05EA-A1	LPPF500B05EB-A1	LPPF500B05SA-A1	LPPF500B05SB-A1	LPPF500B10EA-A1
LPPF500B10EB-A1	LPPF500B10SA-A1	LPPF500B10SB-A1	LPPF500B20EA-A1	LPPF500B20EB-A1
LPPF500B20SA-A1	LPPF500B20SB-A1	LPPF500B30EA-A1	LPPF500B30EB-A1	LPPF500B30SA-A1
LPPF500B30SB-A1	LPPF500B40EA-A1	LPPF500B40EB-A1	LPPF500B40SA-A1	LPPF500B40SB-A1
LPPF500C05EA-A1	LPPF500C05EB-A1	LPPF500C05SA-A1	LPPF500C05SB-A1	LPPF500C10EA-A1
LPPF500C10EB-A1	LPPF500C10SA-A1	LPPF500C10SB-A1	LPPF500C20EA-A1	LPPF500C20EB-A1
LPPF500C20SA-A1	LPPF500C20SB-A1	LPPF500C30EA-A1	LPPF500C30EB-A1	LPPF500C30SA-A1
LPPF500C30SB-A1	LPPF500C40EA-A1	LPPF500C40EB-A1	LPPF500C40SA-A1	LPPF500C40SB-A1
LPPF500D05EA-A1	LPPF500D05EB-A1	LPPF500D05SA-A1	LPPF500D05SB-A1	LPPF500D10EA-A1
LPPF500D10EB-A1	LPPF500D10SA-A1	LPPF500D10SB-A1	LPPF500D20EA-A1	LPPF500D20EB-A1
LPPF500D20SA-A1	LPPF500D20SB-A1	LPPF500D30EA-A1	LPPF500D30EB-A1	LPPF500D30SA-A1
LPPF500D30SB-A1	LPPF500D40EA-A1	LPPF500D40EB-A1	LPPF500D40SA-A1	LPPF500D40SB-A1
LPPF500E05EA-A1	LPPF500E05EB-A1	LPPF500E05SA-A1	LPPF500E05SB-A1	LPPF500E10EA-A1
LPPF500E10EB-A1	LPPF500E10SA-A1	LPPF500E10SB-A1	LPPF500E20EA-A1	LPPF500E20EB-A1
LPPF500E20SA-A1	LPPF500E20SB-A1	LPPF500E30EA-A1	LPPF500E30EB-A1	LPPF500E30SA-A1
LPPF500E30SB-A1	LPPF500E40EA-A1	LPPF500E40EB-A1	LPPF500E40SA-A1	LPPF500E40SB-A1
