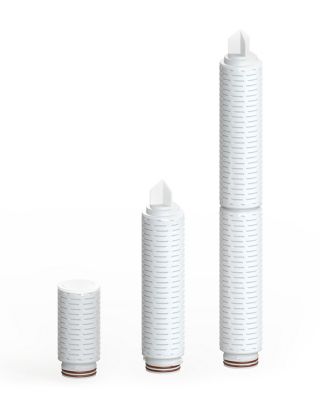

PSTS Series PES Cartridge Filter

Download Image

PSTS series cartridge filters are constructed of polypropylene components and a hydrophilic polyethersulphone (PES) membrane, 100% integrity tested during manufacturing to guarantee filter integrity and sterility assurance.

Easily wetted for integrity test
High flow rate and long service life
Proven compatibility with diverse injections

Note: These filters are not available for North America and Europe. Please reach out to our specialists for other product recommendation for your applications.

Read More Read Less

Specify Your Part

Retention Rating

End Cap Configuration

Length

O-ring

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications PSTS Series PES Cartridge Filter Applications

Facility water
LVP/SVP
Ophthalmic solutions
API

Specifications

Drawings

Length	Code 0 (A)	Code 5 (A)	Code 6 (A)	Code 7 (A)
5"	148.0 mm (5.8")	–	150.5 mm (5.9")	–
10"	273.0 mm (10.7")	314.0 mm (12.4")	276.0 mm (10.9")	316.5 mm (12.5")
20"	517.5 mm (20.4")	558.5 mm (22.0")	520.0 mm (20.5")	561.0 mm (22.1")
30"	762.0 mm (30.0")	803.0 mm (31.6")	764.5 mm (30.1")	805.5 mm (31.7")
40"	1006.5 mm (39.6")	1047.5 mm (41.2")	1009.0 mm (39.7")	1050.0 mm (41.3")

Performance Data

Product Specifications

Materials of construction	Membrane	Hydrophilic PES
	Support	Polypropylene
	Core and Cage	Polypropylene
	End Caps	Polypropylene with stainless steel (SS) lining
	O-rings/Gasket	Silicone/EPDM
	Sealing technology	Thermal bonding, no adhesives
Dimensions	Diameter	Ø70 mm
Dimensions	Length	5”, 10”, 20”, 30”, 40”
Filtration area	≥6.4 ft² per 10” cartridge
Retention rating	0.1, 0.22, 0.45, 0.22+0.1, 0.22+0.22, 0.45+0.22 μm (Other retention rating on request)
Maximum differential pressure	Forward:	4.2 bar @ 23°C (73°F), 1.0 bar @ 85°C (185°F)
Integrity test-water bubble point at 23°C	0.1 μm	≥3800 mbar
	0.22 μm	≥3400 mbar
	0.45 μm	≥2300 mbar
Bacterial retention (for 0.1 μm & 0.22 μm only)	Passed the bacterial challenge testing using Brevundimonas diminuta (ATCC19146) at a minimum challenge concentration of 1 × 10⁷ CFU/cm²
Multiple sterilization cycles	May be steam-in-place sterilization for maximum 20 cycles at 127°C (261°F), 30 min, ΔP≤300mbar
	May be autoclaved for maximum 20 cycles at 123°C (253°F), 30 min
	May be sanitized by hot water, maximum 30 cycles at 85°C (185°F)
Food contact material	Meets the requirements of (EC) No 1935/2004
Indirect food additive	Meets the FDA Indirect Food Additive requirements cited in 21 CFR 177-182
Quality	Manufactured in accordance with ISO 9001 and ISO 13485 certified quality management system

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Feb 21, 2025 Data Sheet PSTS Series PES Cartridge Filter

334.2 kB

Published Feb 21, 2025 Data Sheet PSTS Series PES Cartridge Filter - A4

334.3 kB

Part Numbers

PSTS Series PES Cartridge Filter Part Numbers

Show Part Numbers Hide Part Numbers

PSTS010A10EB-A1	PSTS010A10SB-A1	PSTS010A20EB-A1	PSTS010A20SB-A1	PSTS010A30EB-A1
PSTS010A30SB-A1	PSTS010A40EB-A1	PSTS010A40SB-A1	PSTS010B05EB-A1	PSTS010B05SB-A1
PSTS010B10EB-A1	PSTS010B10SB-A1	PSTS010B20EB-A1	PSTS010B20SB-A1	PSTS010B30EB-A1
PSTS010B30SB-A1	PSTS010B40EB-A1	PSTS010B40SB-A1	PSTS010C10EB-A1	PSTS010C10SB-A1
PSTS010C20EB-A1	PSTS010C20SB-A1	PSTS010C30EB-A1	PSTS010C30SB-A1	PSTS010C40EB-A1
PSTS010C40SB-A1	PSTS010D05EB-A1	PSTS010D05SB-A1	PSTS010D10EB-A1	PSTS010D10SB-A1
PSTS010D20EB-A1	PSTS010D20SB-A1	PSTS010D30EB-A1	PSTS010D30SB-A1	PSTS010D40EB-A1
PSTS010D40SB-A1	PSTS010E10EB-A1	PSTS010E10SB-A1	PSTS010E20EB-A1	PSTS010E20SB-A1
PSTS010E30EB-A1	PSTS010E30SB-A1	PSTS010E40EB-A1	PSTS010E40SB-A1	PSTS022A10EB-A1
PSTS022A10SB-A1	PSTS022A20EB-A1	PSTS022A20SB-A1	PSTS022A30EB-A1	PSTS022A30SB-A1
PSTS022A40EB-A1	PSTS022A40SB-A1	PSTS022B05EB-A1	PSTS022B05SB-A1	PSTS022B10EB-A1
PSTS022B10SB-A1	PSTS022B20EB-A1	PSTS022B20SB-A1	PSTS022B30EB-A1	PSTS022B30SB-A1
PSTS022B40EB-A1	PSTS022B40SB-A1	PSTS022C10EB-A1	PSTS022C10SB-A1	PSTS022C20EB-A1
PSTS022C20SB-A1	PSTS022C30EB-A1	PSTS022C30SB-A1	PSTS022C40EB-A1	PSTS022C40SB-A1
PSTS022D05EB-A1	PSTS022D05SB-A1	PSTS022D10EB-A1	PSTS022D10SB-A1	PSTS022D20EB-A1
PSTS022D20SB-A1	PSTS022D30EB-A1	PSTS022D30SB-A1	PSTS022D40EB-A1	PSTS022D40SB-A1
PSTS022E10EB-A1	PSTS022E10SB-A1	PSTS022E20EB-A1	PSTS022E20SB-A1	PSTS022E30EB-A1
PSTS022E30SB-A1	PSTS022E40EB-A1	PSTS022E40SB-A1	PSTS045A10EB-A1	PSTS045A10SB-A1
PSTS045A20EB-A1	PSTS045A20SB-A1	PSTS045A30EB-A1	PSTS045A30SB-A1	PSTS045A40EB-A1
PSTS045A40SB-A1	PSTS045B05EB-A1	PSTS045B05SB-A1	PSTS045B10EB-A1	PSTS045B10SB-A1
PSTS045B20EB-A1	PSTS045B20SB-A1	PSTS045B30EB-A1	PSTS045B30SB-A1	PSTS045B40EB-A1
PSTS045B40SB-A1	PSTS045C10EB-A1	PSTS045C10SB-A1	PSTS045C20EB-A1	PSTS045C20SB-A1
PSTS045C30EB-A1	PSTS045C30SB-A1	PSTS045C40EB-A1	PSTS045C40SB-A1	PSTS045D05EB-A1
PSTS045D05SB-A1	PSTS045D10EB-A1	PSTS045D10SB-A1	PSTS045D20EB-A1	PSTS045D20SB-A1
PSTS045D30EB-A1	PSTS045D30SB-A1	PSTS045D40EB-A1	PSTS045D40SB-A1	PSTS045E10EB-A1
PSTS045E10SB-A1	PSTS045E20EB-A1	PSTS045E20SB-A1	PSTS045E30EB-A1	PSTS045E30SB-A1
PSTS045E40EB-A1	PSTS045E40SB-A1	PSTSD21A10EB-A1	PSTSD21A10SB-A1	PSTSD21A20EB-A1
PSTSD21A20SB-A1	PSTSD21A30EB-A1	PSTSD21A30SB-A1	PSTSD21A40EB-A1	PSTSD21A40SB-A1
PSTSD21B05EB-A1	PSTSD21B05SB-A1	PSTSD21B10EB-A1	PSTSD21B10SB-A1	PSTSD21B20EB-A1
PSTSD21B20SB-A1	PSTSD21B30EB-A1	PSTSD21B30SB-A1	PSTSD21B40EB-A1	PSTSD21B40SB-A1
PSTSD21C10EB-A1	PSTSD21C10SB-A1	PSTSD21C20EB-A1	PSTSD21C20SB-A1	PSTSD21C30EB-A1
PSTSD21C30SB-A1	PSTSD21C40EB-A1	PSTSD21C40SB-A1	PSTSD21D05EB-A1	PSTSD21D05SB-A1
PSTSD21D10EB-A1	PSTSD21D10SB-A1	PSTSD21D20EB-A1	PSTSD21D20SB-A1	PSTSD21D30EB-A1
PSTSD21D30SB-A1	PSTSD21D40EB-A1	PSTSD21D40SB-A1	PSTSD21E10EB-A1	PSTSD21E10SB-A1
PSTSD21E20EB-A1	PSTSD21E20SB-A1	PSTSD21E30EB-A1	PSTSD21E30SB-A1	PSTSD21E40EB-A1
PSTSD21E40SB-A1	PSTSD22A10EB-A1	PSTSD22A10SB-A1	PSTSD22A20EB-A1	PSTSD22A20SB-A1
PSTSD22A30EB-A1	PSTSD22A30SB-A1	PSTSD22A40EB-A1	PSTSD22A40SB-A1	PSTSD22B05EB-A1
PSTSD22B05SB-A1	PSTSD22B10EB-A1	PSTSD22B10SB-A1	PSTSD22B20EB-A1	PSTSD22B20SB-A1
PSTSD22B30EB-A1	PSTSD22B30SB-A1	PSTSD22B40EB-A1	PSTSD22B40SB-A1	PSTSD22C10EB-A1
PSTSD22C10SB-A1	PSTSD22C20EB-A1	PSTSD22C20SB-A1	PSTSD22C30EB-A1	PSTSD22C30SB-A1
PSTSD22C40EB-A1	PSTSD22C40SB-A1	PSTSD22D05EB-A1	PSTSD22D05SB-A1	PSTSD22D10EB-A1
PSTSD22D10SB-A1	PSTSD22D20EB-A1	PSTSD22D20SB-A1	PSTSD22D30EB-A1	PSTSD22D30SB-A1
PSTSD22D40EB-A1	PSTSD22D40SB-A1	PSTSD22E10EB-A1	PSTSD22E10SB-A1	PSTSD22E20EB-A1
PSTSD22E20SB-A1	PSTSD22E30EB-A1	PSTSD22E30SB-A1	PSTSD22E40EB-A1	PSTSD22E40SB-A1
PSTSD42A10EB-A1	PSTSD42A10SB-A1	PSTSD42A20EB-A1	PSTSD42A20SB-A1	PSTSD42A30EB-A1
PSTSD42A30SB-A1	PSTSD42A40EB-A1	PSTSD42A40SB-A1	PSTSD42B05EB-A1	PSTSD42B05SB-A1
PSTSD42B10EB-A1	PSTSD42B10SB-A1	PSTSD42B20EB-A1	PSTSD42B20SB-A1	PSTSD42B30EB-A1
PSTSD42B30SB-A1	PSTSD42B40EB-A1	PSTSD42B40SB-A1	PSTSD42C10EB-A1	PSTSD42C10SB-A1
PSTSD42C20EB-A1	PSTSD42C20SB-A1	PSTSD42C30EB-A1	PSTSD42C30SB-A1	PSTSD42C40EB-A1
PSTSD42C40SB-A1	PSTSD42D05EB-A1	PSTSD42D05SB-A1	PSTSD42D10EB-A1	PSTSD42D10SB-A1
PSTSD42D20EB-A1	PSTSD42D20SB-A1	PSTSD42D30EB-A1	PSTSD42D30SB-A1	PSTSD42D40EB-A1
PSTSD42D40SB-A1	PSTSD42E10EB-A1	PSTSD42E10SB-A1	PSTSD42E20EB-A1	PSTSD42E20SB-A1
PSTSD42E30EB-A1	PSTSD42E30SB-A1	PSTSD42E40EB-A1	PSTSD42E40SB-A1
