Pharmsteri™ AHC PES Liquid Capsule and Cartridge Filter

Delivers superior throughput for broad challenging feed streams while minimize product loss in sterile filtration.

Dual layer and highly asymmetric PES membrane minimize pressure build-up while processing large volume fluids
Structure design helps minimize dead zone which can cause loss of high value products
Sterilizing grade meets Bacterial Challenge Test (ASTM F838) to ensure that microorganisms, such as bacteria, are removed from the fluid stream while not adversely affecting product
Broad chemical compatibility pH 1~14, allows use in a range of chemicals including acids and bases
Product has been rigorously validated to product specification and industry standards with comprehensive documentation to support compliance

Read More Read Less

Specify Your Part

Form Factor

Size

Length

Retention Rating

Connection

Inlet and Outlet Connection

Packaging Configuration

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Pharmsteri™ AHC PES Liquid Capsule and Cartridge Filter Applications

Bioburden or sterile filtration for various process fluids
Cell culture media and additives
Process intermediates in mAb, vaccines, etc.
Column or downstream unit protection
High concentration buffers
Bulk drug substances
Protein solutions or formulations
Other fouling or non-fouling fluids

Specifications

Drawings

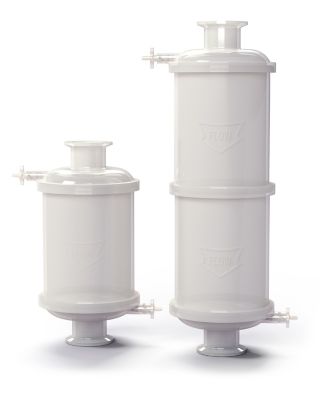

Capsules
Size - Connections	Total Length - A	Body Diameter - B	Min Width - C	Max Width - D
3-inch TC-TC	154.5 mm (6.08”)	96.0 mm (3.78”)	107.0 mm (4.21”)	153.0 mm (6.02”)
3-inch TC-HB	156.7 mm (6.17”)	96.0 mm (3.78”)	107.0 mm (4.21”)	153.0 mm (6.02”)
3-inch HB-HB	159.7 mm (6.29”)	96.0 mm (3.78”)	107.0 mm (4.21”)	153.0 mm (6.02”)
5-inch TC-TC	213.2 mm (8.39”)	96.0 mm (3.78”)	107.0 mm (4.21”)	153.0 mm (6.02”)
5-inch TC-HB	216.5 mm (8.52”)	96.0 mm (3.78”)	107.0 mm (4.21”)	153.0 mm (6.02”)
5-inch HB-HB	219.5 mm (8.96”)	96.0 mm (3.78”)	107.0 mm (4.21”)	153.0 mm (6.02”)
10-inch TC-TC	335.5 mm (13.21”)	96.0 mm (3.78”)	107.0 mm (4.21”)	153.0 mm (6.02”)
10-inch TC-HB	339.0 mm (13.35”)	96.0 mm (3.78”)	107.0 mm (4.21”)	153.0 mm (6.02”)
10-inch HB-HB	342.0 mm (13.46”)	96.0 mm (3.78”)	107.0 mm (4.21”)	153.0 mm (6.02”)

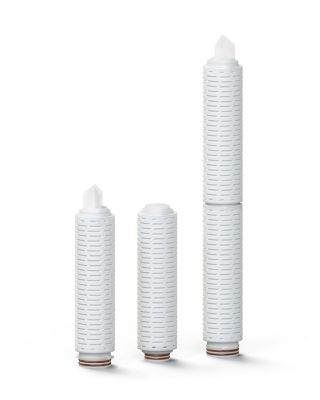

Cartridges
Size	Code 6 Dimension A	Code 7 Dimension A
5"	150.5 mm (5.9”)	199.0 mm (7.8”)
10"	276.0 mm (10.9”)	316.5 mm (12.5”)
20"	520.0 mm (20.5”)	561.0 mm (22.1”)
30"	764.5 mm (30.1”)	805.5 mm (31.7”)

Performance Data

Product Specifications

		3”/5”/10” In-line Capsules		5”/10”/20”/30” Cartridges
Materials	Media	Polyethersulfone (PES)		Polyethersulfone (PES)
	Support	Polypropylene		Polypropylene
	Core, cage, end caps	Polypropylene		Polypropylene
	O-ring	Silicone		Silicone
Sealing technology		Thermal bonding without adhesives		Thermal bonding without adhesives
Pore size		0.45+0.22 μm		0.45+0.22 μm
		0.65+0.22 μm		0.65+0.22 μm
Filtration area		3"	0.15 m²	5"	0.28 m²
		5"	0.28 m²	Per 10"	0.55 m²
		10"	0.55 m²
Integrity	Bubble point	≥3.65 bar (53 psi) air with water		≥3.65 bar (53 psi) air with water
	Water Diffusion	3"	≤ 6.8 mL/min @ 40 psi at 25°C	5"	≤ 11 mL/min @ 40 psi at 25°C
		5"	≤ 10.5 mL/min @ 40 psi at 25°C	Per 10"	≤ 21 mL/min @ 40 psi at 25°C
		10"	≤ 21 mL/min @ 40 psi at 25°C
Maximum operating conditions	Maximum operating pressure	80 psi (5.5 bar) @ 25°C (77°F)		80 psi (5.5 bar) @ 25°C (77°F)
		40 psi (2.8 bar) @ 60°C (140°F)		29 psi (2.0 bar) @ 80°C (176°F)
	Maximum differential pressure	Forward 60 psi (4.1 bar) @ 25°C (77°F)		Forward 60 psi (4.2 bar) @ 25°C (77°F)
		Forward 30 psi (2.1 bar) @ 60°C (140°F)		Forward 29 psi (2.0 bar) @ 80°C
		Reverse 10 psi (0.7 bar) @25°C (77°F)		Reverse 10 psi (0.7 bar) @ 25°C (77°F)
Bacteria Retention		>10⁷ CFU/cm² B. diminuta per the ASTM F838		>10⁷ CFU/cm² B. diminuta per the ASTM F838
Multiple sterilization cycles		25 cycles of autoclave, 30 min at 127°C (260.6°F)		25 cycles of autoclave, 30 min at 127°C (260.6°F), or 25 cycles of 30 min steam in place (SIP) at 131°C with differential pressure under 300 mbar
Endotoxin releasing	<0.25 EU/mL as determined by the LAL test, meeting the requirements of USP <85>
Particulates	Particulate matter release meets the requirement of USP <788>
Non-fiber releasing	Manufactured with non-fiber release materials and tested according to 21 CFR 210.3 (b) (6)
TOC	<0.5 mg/L post autoclave and after a water flush, meeting the requirements of USP <643>
Conductivity	≤1.3 µS/cm post autoclave and after water flush, meeting the requirements of USP <645>
Material toxicity	All components meet the requirements of the USP <87>, Biological Reactivity Test and the USP <88> Reactivity Test for Class VI Plastics
Animal Free	Raw materials used to manufacture this product are not animal derived, meeting the EU directive for animal free CPMP EMA/410/01 and 21 CFR parts 189.5
Extractables	Tested according to BioPhorum Operations Group (BPOG) guideline. Report is available upon request.
Quality	100% integrity tested, manufactured in accordance with ISO 9001 and ISO 13485 certified quality management system

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Jun 26, 2025 Data Sheet Pharmsteri™ AHC PES Liquid Capsule and Cartridge Filter

533.7 kB

Published Jun 26, 2025 Data Sheet Pharmsteri™ AHC PES Liquid Capsule and Cartridge Filter - A4

533.6 kB

Part Numbers

Pharmsteri™ AHC PES Liquid Capsule and Cartridge Filter Part Numbers

Part Number	Form Factor	Size	Length	Retention Rating	Connection	Inlet and Outlet Connection	Packaging Configuration
PSTACSD042HS03-2	Capsule	3" capsule	N/A	0.45 + 0.22 µm	N/A	1/2" hose barb	2 ea/box
PSTACSD042HS05-1	Capsule	5" capsule	N/A	0.45 + 0.22 µm	N/A	1/2" hose barb	1 ea/box
PSTACSD042HS10-1	Capsule	10" capsule	N/A	0.45 + 0.22 µm	N/A	1/2" hose barb	1 ea/box
PSTACSD042TH03-2	Capsule	3" capsule	N/A	0.45 + 0.22 µm	N/A	1.5" sanitary TC inlet and 1/2" hose barb outlet	2 ea/box
PSTACSD042TH05-1	Capsule	5" capsule	N/A	0.45 + 0.22 µm	N/A	1.5" sanitary TC inlet and 1/2" hose barb outlet	1 ea/box
PSTACSD042TH10-1	Capsule	10" capsule	N/A	0.45 + 0.22 µm	N/A	1.5" sanitary TC inlet and 1/2" hose barb outlet	1 ea/box
PSTACSD042TS03-2	Capsule	3" capsule	N/A	0.45 + 0.22 µm	N/A	1.5" sanitary TC	2 ea/box
PSTACSD042TS05-1	Capsule	5" capsule	N/A	0.45 + 0.22 µm	N/A	1.5" sanitary TC	1 ea/box
PSTACSD042TS10-1	Capsule	10" capsule	N/A	0.45 + 0.22 µm	N/A	1.5" sanitary TC	1 ea/box
PSTACSD062HS03-2	Capsule	3" capsule	N/A	0.65 + 0.22 µm	N/A	1/2" hose barb	2 ea/box
PSTACSD062HS05-1	Capsule	5" capsule	N/A	0.65 + 0.22 µm	N/A	1/2" hose barb	1 ea/box
PSTACSD062HS10-1	Capsule	10" capsule	N/A	0.65 + 0.22 µm	N/A	1/2" hose barb	1 ea/box
PSTACSD062TH03-2	Capsule	3" capsule	N/A	0.65 + 0.22 µm	N/A	1.5" sanitary TC inlet and 1/2" hose barb outlet	2 ea/box
PSTACSD062TH05-1	Capsule	5" capsule	N/A	0.65 + 0.22 µm	N/A	1.5" sanitary TC inlet and 1/2" hose barb outlet	1 ea/box
PSTACSD062TH10-1	Capsule	10" capsule	N/A	0.65 + 0.22 µm	N/A	1.5" sanitary TC inlet and 1/2" hose barb outlet	1 ea/box
PSTACSD062TS03-2	Capsule	3" capsule	N/A	0.65 + 0.22 µm	N/A	1.5" sanitary TC	2 ea/box
PSTACSD062TS05-1	Capsule	5" capsule	N/A	0.65 + 0.22 µm	N/A	1.5" sanitary TC	1 ea/box
PSTACSD062TS10-1	Capsule	10" capsule	N/A	0.65 + 0.22 µm	N/A	1.5" sanitary TC	1 ea/box
PSTSAD42605S1	Cartridge	5" capsule	5"	0.45 + 0.22 µm	Code 6	N/A	N/A
PSTSAD42610S1	Cartridge	5" capsule	10"	0.45 + 0.22 µm	Code 6	N/A	N/A
PSTSAD42620S1	Cartridge	5" capsule	20"	0.45 + 0.22 µm	Code 6	N/A	N/A
PSTSAD42630S1	Cartridge	10" capsule	30"	0.45 + 0.22 µm	Code 6	N/A	N/A
PSTSAD42705S1	Cartridge	5" capsule	5"	0.45 + 0.22 µm	Code 7	N/A	N/A
PSTSAD42710S1	Cartridge	5" capsule	10"	0.45 + 0.22 µm	Code 7	N/A	N/A
PSTSAD42720S1	Cartridge	5" capsule	20"	0.45 + 0.22 µm	Code 7	N/A	N/A
PSTSAD42730S1	Cartridge	10" capsule	30"	0.45 + 0.22 µm	Code 7	N/A	N/A
PSTSAD62605S1	Cartridge	5" capsule	5"	0.65 + 0.22 µm	Code 6	N/A	N/A
PSTSAD62610S1	Cartridge	5" capsule	10"	0.65 + 0.22 µm	Code 6	N/A	N/A
PSTSAD62620S1	Cartridge	5" capsule	20"	0.65 + 0.22 µm	Code 6	N/A	N/A
PSTSAD62630S1	Cartridge	10" capsule	30"	0.65 + 0.22 µm	Code 6	N/A	N/A
PSTSAD62705S1	Cartridge	5" capsule	5"	0.65 + 0.22 µm	Code 7	N/A	N/A
PSTSAD62710S1	Cartridge	5" capsule	10"	0.65 + 0.22 µm	Code 7	N/A	N/A
PSTSAD62720S1	Cartridge	5" capsule	20"	0.65 + 0.22 µm	Code 7	N/A	N/A
PSTSAD62730S1	Cartridge	10" capsule	30"	0.65 + 0.22 µm	Code 7	N/A	N/A
