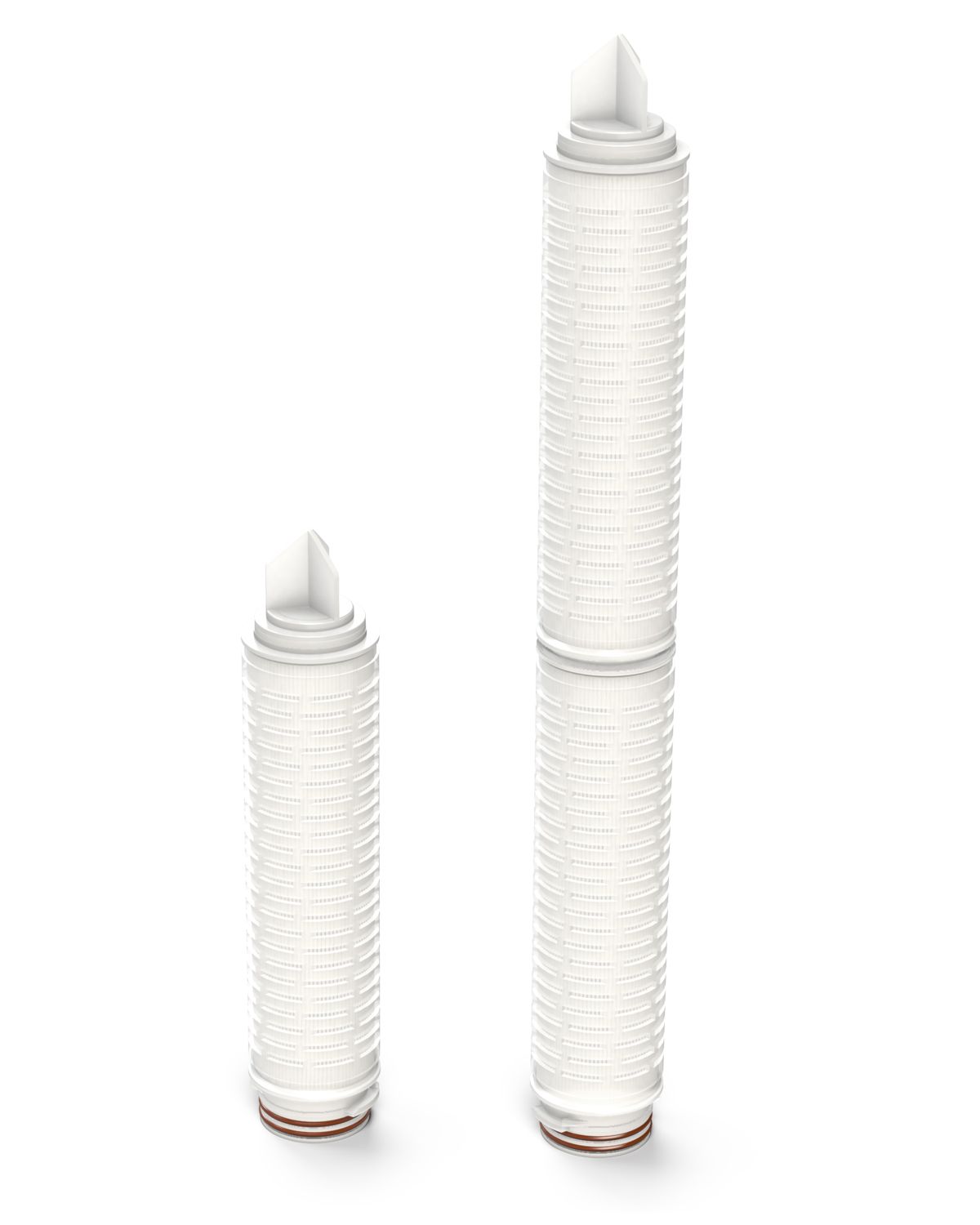

Pharmsteri™ PP Cartridge Filter
Specify Your Part
Part Number:
Interested in an Entegris Product?
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact Us
Request a Quote
Quote Requested
Thank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
*Code 5 and code 7 are only available with 10”, 20”, 30”, or 40” lengths
Top of page
Reference Materials
CAD
CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.
Applications
- Pharmaceutical: Facility water, buffers, LVP/SVP, bulk chemicals
- Food and Beverage: Facility water, drinking water, prefiltration for draft beer, clarification for wine/drinks
Specifications
| Length | A (Code 0) | B (Code F) | C (Code 5) | D (Code 7) |
| 5" | 160 mm (6.3") | 137 mm (5.4") | ||
| 10" | 273.5 mm (10.8") | 254 mm (10.0") | 314 mm (12.4") | 316 mm (12.0") |
| 20" | 518.5 mm (20.4") | 500 mm (19.7") | 559 mm (22.0") | 561 mm (22.1") |
| 30" | 763.5 mm (30.1") | 745 mm (29.3") | 804 mm (31.7") | 806 mm (31.7") |
| 40" | 1008 mm (39.7") | 990 mm (39.0") | 1048 mm (41.3") | 1050 mm (41.3") |
| Retention ratings | 0.1, 0.2, 0.45, 1.0, 3.0, 5.0, 10, 20 µm | |
| Materials | Media | Polypropylene |
| Support | Polypropylene | |
| Sleeve, core, top, end caps | Polypropylene | |
| O-ring | Silicone | |
| Gasket (Code F) | Silicone | |
| Sealing technology | Thermal bonding without adhesives | |
| Filtration area | ≥0.43 m2/10" cartridge | |
| Maximum operating conditions | Maximum forward differential pressure | 4.2 bar @ 25°C (77°F), 2.0 bar @ 80°C (176°F) |
| Maximum operating temperature | 80°C (176°F) | |
| Multiple sterilization cycles | 20 cycles of steam-in-place (SIP) sterilization or autoclave, 30 min at 127°C (261°F) | |
| Endotoxin releasing | <0.25 EU/mL as determined by the LAL test | |
| TOC | <0.5 mg/L after a water flush of 11 L/10" cartridge | |
| Conductivity | ≤1.3 µS/cm after water flush of 11 L/10" cartridge | |
| Particle release | Meets the requirements of WFI set by USP | |
| NVR | <50 mg/10" cartridge, after autoclaving and a 24-hour, 50% ethanol aqueous solution vibrating extraction | |
| Material toxicity | All components meet the requirements of the USP <88> Reactivity Test for Class VI Plastics | |
| Quality | Manufactured in accordance with ISO 9001 and ISO 13485 certified quality management system | |
