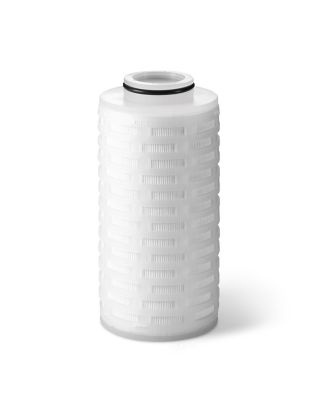

Savana® 334 PTFE Cartridge Filters

Download Image

Savana® 334 PTFE cartridge filters are constructed of PTFE pleated membranes with polypropylene supports to provide durability and high flow performance for filtration of process fluids in electronic industry.

High-flow, lower pressure drop performance increases equipment uptime and process yield
High-flow and efficient particle capture – ensures rapid removal in one-pass and recirculation applications
High particle capacity design to increase lifetime
Excellent chemical compatibility, long service time and reduced system startup time

Read More Read Less

Specify Your Part

Retention Rating

Length

O-ring

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Savana® 334 PTFE Cartridge Filters Applications

Stripper, IPA or solvent
Wet etching chemicals

Specifications

Drawings

Performance Data

Product Specifications

Materials	Membrane	Hydrophobic PTFE
	Support, core, sleeve	Polypropylene
	O-ring (Code R : AS568-334)	EPDM, E-FKM (encapsulated fluoroelastomer)
Retention rating	1, 3, 10 µm
Maximum operating conditions	Maximum forward differential pressure	0.41 MPa at 20°C (68°F)
	Maximum reverse differential pressure	0.10 MPa at 20°C (68°F)
	Maximum operating temperature	80°C (176°F)
Dimensions (nominal)	Length	267.7 mm (10.54")
	Diameter	131.5 mm (5.18")

Successfully Opted for software Updates

Reference Materials Product Documentation

Published May 1, 2023 Data Sheet Savana® 334 PTFE Cartridge Filters

226.4 kB

Part Numbers

Savana® 334 PTFE Cartridge Filters Part Numbers

Part Number	Retention Rating	Length	O-ring
SVEAR10E1	1 µm	10"	EPDM
SVEAR10T1	1 µm	10"	E-FKM
SVECR10E1	10 µm	10"	EPDM
SVECR10T1	10 µm	10"	E-FKM
SVESR10E1	3 µm	10"	EPDM
SVESR10T1	3 µm	10"	E-FKM
