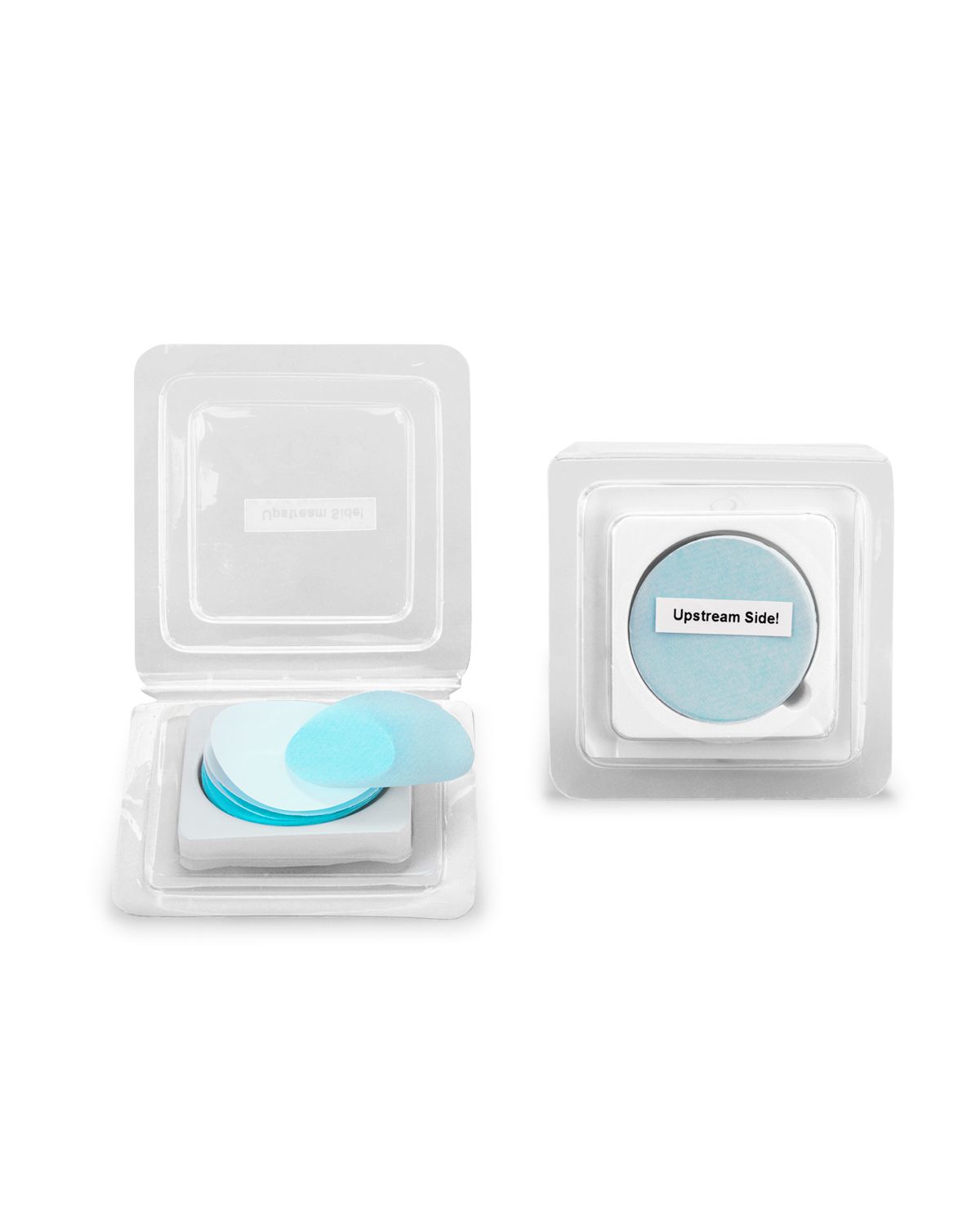

Savana® Lab Disc Filter

Download Image

For clarification of acids, bases, and solvents, these filters offer scalability as your volume and filtration needs change.

Media disc diameter ranging from 13 to 90 mm
Available in five media materials

Read More Read Less

Specify Your Part

Membrane/Media

Pack

Diameter

Retention Rating

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly. Have an account? Sign In

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

(Optional) Comments

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Savana® Lab Disc Filter Applications

Purification in life sciences applications
Fluids used in laboratory, pilot, and small scale applications
Clarification of acids, bases, and solvents

Specifications

Product Specifications

Materials	Hydrophobic PTFE membrane
	Hydrophobic polypropylene membrane
	Hydrophilic polyethersulfone membrane
	Polypropylene media (nonwoven)
	Polypropylene depth (nonwoven)
Disc size	13 mm (except PP depth), 25 mm (except PP depth)
	47 mm, 90 mm
Operating conditions	Pressure rating depends on holder rating
	Maximum operating temperature: 60°C (140°F)

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Nov 24, 2020 Data Sheet Savana® Lab Disc Filter

158.8 kB

Part Numbers

Savana® Lab Disc Filter Part Numbers

Part Number	Membrane/Media	Pack	Diameter	Retention Rating
SVLD013A020B	PTFE	50	13 mm	0.2 µm
SVLD013A100B	PTFE	50	13 mm	1 µm
SVLD013A300B	PTFE	50	13 mm	3.0 µm
SVLD013F010B	PES	50	13 mm	0.1 µm
SVLD013F020B	PES	50	13 mm	0.2 µm
SVLD013F045B	PES	50	13 mm	0.45 µm
SVLD025A050B	PTFE	50	25 mm	0.5 µm
SVLD025C010B	PP	50	25 mm	0.1 µm
SVLD025C020B	PP	50	25 mm	0.2 µm
SVLD025D030A	PP	25	25 mm	0.3 µm
SVLD025D060A	PP	25	25 mm	0.6 µm
SVLD025D100A	PP	25	25 mm	1 µm
SVLD025D10HA	PP	25	25 mm	10 µm
SVLD025D20HA	PP	25	25 mm	20 µm
SVLD025D300A	PP	25	25 mm	3.0 µm
SVLD025D30HA	PP	25	25 mm	30 µm
SVLD025D40HA	PP	25	25 mm	40 µm
SVLD025D500A	PP	25	25 mm	5.0 µm
SVLD025D50HA	PP	25	25 mm	50 µm
SVLD025F005A	PES	25	25 mm	0.05 µm
SVLD025F010B	PES	50	25 mm	0.1 µm
SVLD025F020A	PES	25	25 mm	0.2 µm
SVLD025F020B	PES	50	25 mm	0.2 µm
SVLD025F065A	PES	25	25 mm	0.65 µm
SVLD025F080A	PES	25	25 mm	0.8 µm
SVLD025F120A	PES	25	25 mm	1.2 µm
SVLD047A020A	PTFE	25	47 mm	0.2 µm
SVLD047A020B	PTFE	50	47 mm	0.2 µm
SVLD047A050A	PTFE	25	47 mm	0.5 µm
SVLD047A100A	PTFE	25	47 mm	1 µm
SVLD047A10HA	PTFE	25	47 mm	10 µm
SVLD047A300A	PTFE	50	47 mm	3.0 µm
SVLD047C010B	PP	50	47 mm	0.1 µm
SVLD047C020B	PP	50	47 mm	0.2 µm
SVLD047D030A	PP	25	47 mm	0.3 µm
SVLD047D050A	PP	25	47 mm	0.5 µm
SVLD047D060A	PP	25	47 mm	0.6 µm
SVLD047D100A	PP	25	47 mm	1 µm
SVLD047D10HA	PP	25	47 mm	10 µm
SVLD047D15KA	PP	25	47 mm	150 µm
SVLD047D20HA	PP	25	47 mm	20 µm
SVLD047D300A	PP	25	47 mm	3.0 µm
SVLD047D30HA	PP	25	47 mm	30 µm
SVLD047D40HA	PP	25	47 mm	40 µm
SVLD047D500A	PP	25	47 mm	5.0 µm
SVLD047D50HA	PP	25	47 mm	50 µm
SVLD047D70HA	PP	25	47 mm	70 µm
SVLD047E020C	PP	5	47 mm	0.2 µm
SVLD047E050C	PP	5	47 mm	0.5 µm
SVLD047E100C	PP	5	47 mm	1 µm
SVLD047E10HC	PP	5	47 mm	10 µm
SVLD047E150C	PP	5	47 mm	1.5 µm
SVLD047E250C	PP	5	47 mm	2.5 µm
SVLD047E450C	PP	5	47 mm	4.5 µm
SVLD047F005A	PES	25	47 mm	0.05 µm
SVLD047F005B	PES	50	47 mm	0.05 µm
SVLD047F010B	PES	50	47 mm	0.1 µm
SVLD047F020B	PES	50	47 mm	0.2 µm
SVLD047F045A	PES	25	47 mm	0.45 µm
SVLD047F045B	PES	50	47 mm	0.45 µm
SVLD047F120B	PES	50	47 mm	1.2 µm
SVLD090C020B	PP	50	90 mm	0.2 µm
SVLD090D10HA	PP	25	90 mm	10 µm
SVLD090D40HA	PP	25	90 mm	40 µm
SVLD090E10HC	PP	5	90 mm	10 µm
SVLD090E20HC	PP	5	90 mm	20 µm
SVLD090F010B	PES	50	90 mm	0.1 µm
SVLD090F020B	PES	50	90 mm	0.2 µm
SVLD090F045B	PES	50	90 mm	0.45 µm
SVLD090F065B	PES	50	90 mm	0.65 µm
SVLD090F120B	PES	50	90 mm	1.2 µm
