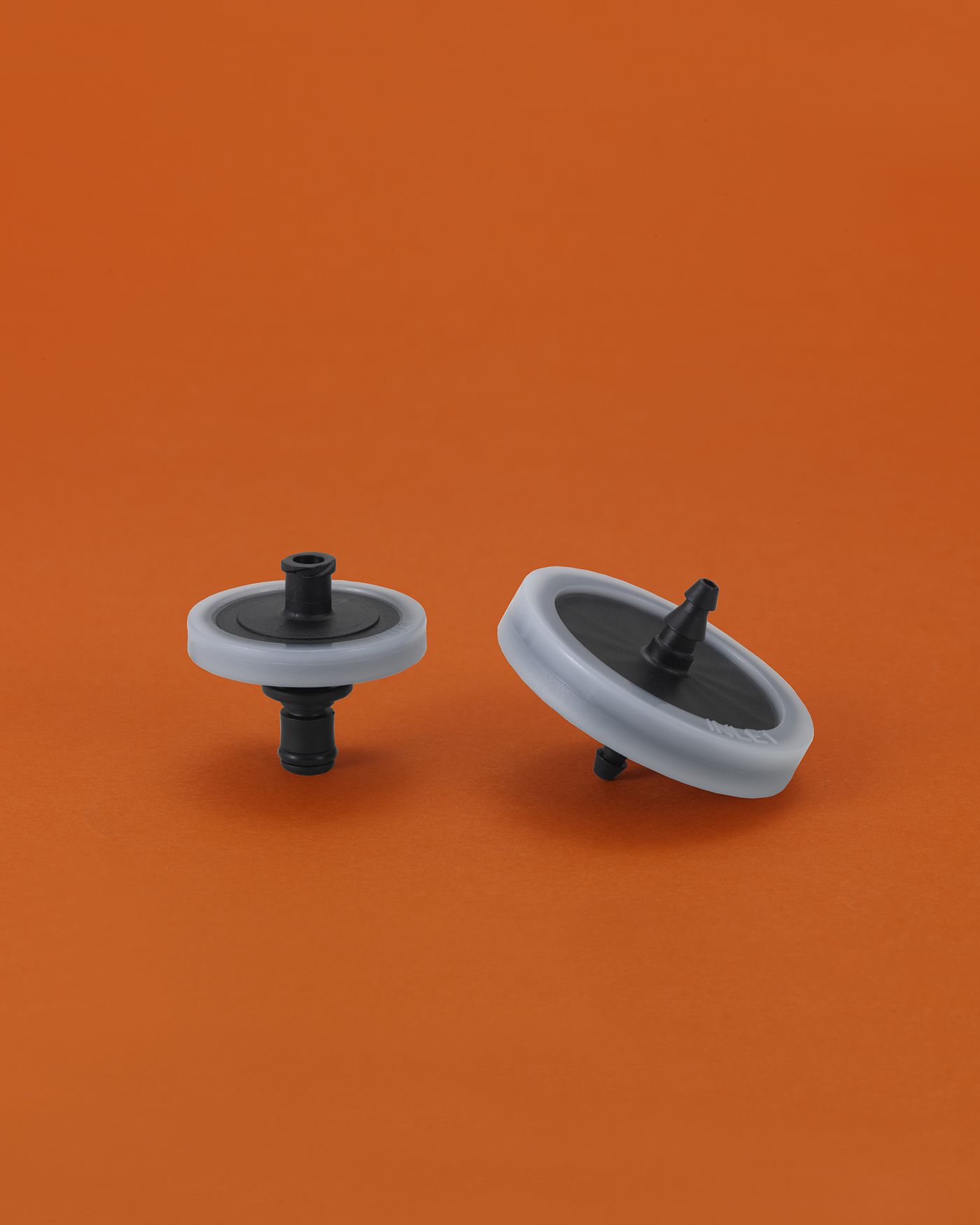

Savana® Lab IJ Disc Filter

Download Image

R&D Lab-scale, ink and photosensitive material filter with good contaminant retention and low hold-up-volume performance in semiconductor, flat panel display, and life science applications.

Read More Read Less

Specify Your Part

Inlet Fitting

Outlet Fitting

Pack

Retention Rating

Materials

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Savana® Lab IJ Disc Filter Applications

Industry: Semiconductor, Life Sciences, Flat Panel Display
Process: R&D, Purificaiton, Color Filter (Color Resist)
Chemistry: Photochemicals, Solvents, Photoresists
Installation Point: Lab Bench

Specifications

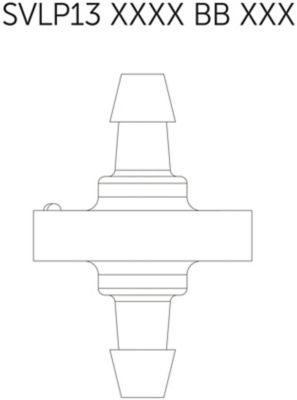

Drawings

Performance Data

Product Specifications

Materials:	Media	Polypropylene media (nonwoven)
	Shell	Black polypropylene
Fitting type:	Standard: BD Luer-Lok™, hose barb, NPT, compression
Effective filtration area:	13 mm	0.8 cm
	25 mm	4.6 cm
	40 mm	10.5 cm
	50 mm	15.9 cm
	65 mm	26.0 cm
Operating conditions:	Maximum operating pressure	0.55 MPa @25°C
	Maximum forward differential pressure	0.3 MPa @20°C
	Maximum reverse differential pressure	0.2 MPa @20°C
	Maximum operating temperature	60°C

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Sep 28, 2018 Data Sheet Savana® Lab IJ Disc Disposable Filter

1.1 MB

Part Numbers

Savana® Lab IJ Disc Filter Part Numbers

Part Number	Inlet Fitting	Outlet Fitting	Pack	Retention Rating	Materials
SVLJ4010HQQ10	BD Luer-lok female	BD Luer-lok female	10	10 µm	PP
SVLJ4020HQQ10	BD Luer-lok female	BD Luer-lok female	10	20 µm	PP
SVLJ40500QQ10	BD Luer-lok female	BD Luer-lok female	10	5.0 µm	PP
