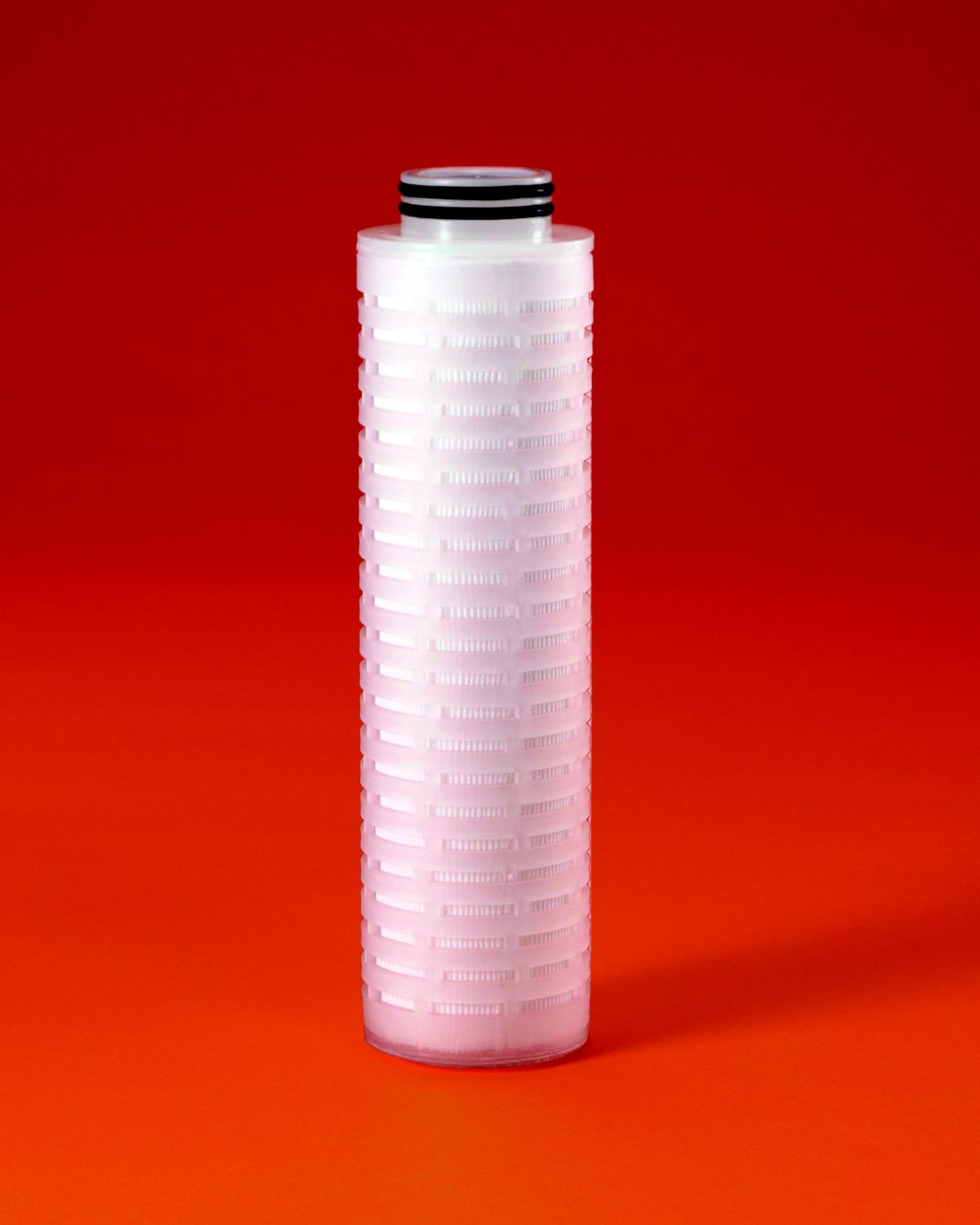

Savana® PP Filter
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
- Industry: Life Sciences, Flat Panel Display, Chemical Manufacturing, Data Storage, Ink
- Process: Purification, Wet Etch and Clean, Resist Stripper, HDD Assembly - Cleaning, Cleaning, Chemical Manufacturing
- Chemistry: Dilute Acids, Dilute Bases, Solvents, Photochemicals, Pigments
- Installation Point: Point of Tool
Specifications
Materials: | Membrane, support, core, sleeve: Polypropylene |
O-ring (AS568-222): EPDM, FKM, E-FKM | |
Retention rating: | |
Maximum operating conditions: | Maximum forward differential pressure: 0.4 MPa (4.0 bar; 58.02 psi @ 20°C (68°F), 0.1 MPa (1.0 bar; 14.50 psi) @ 80°C (176°F) |
Maximum reverse differential pressure: 0.25 MPa (2.5 bar; 36.26 psi @ 20°C (68°F) | |
Maximum operating temperature: 80°C (176°F) | |

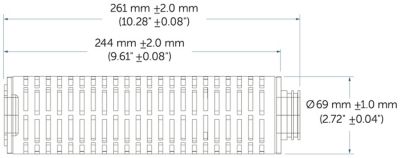

Dimensions (nominal): | Length: 261 mm (CD-0, 10") |
Diameter: 69 mm (CD-0, 10") |
