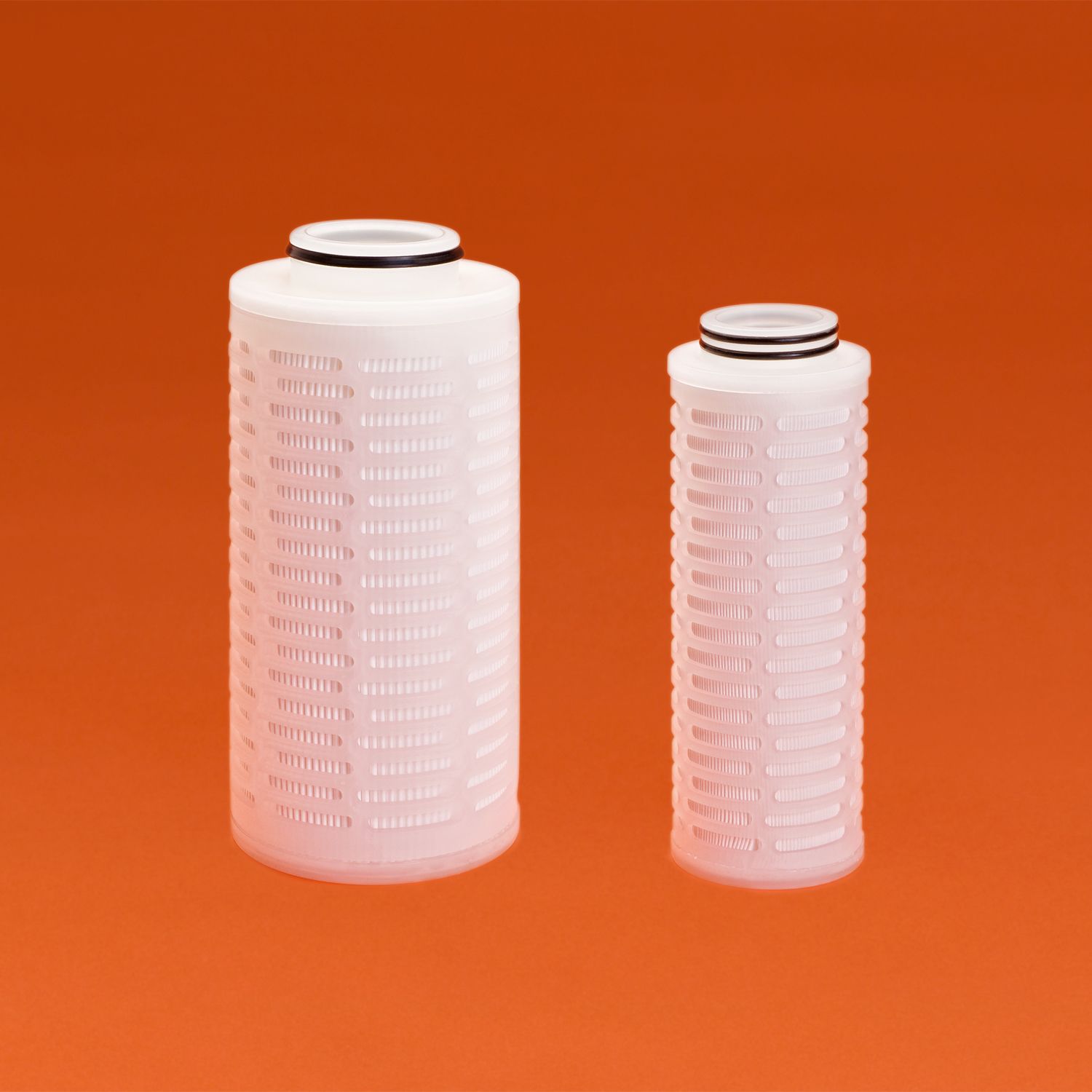

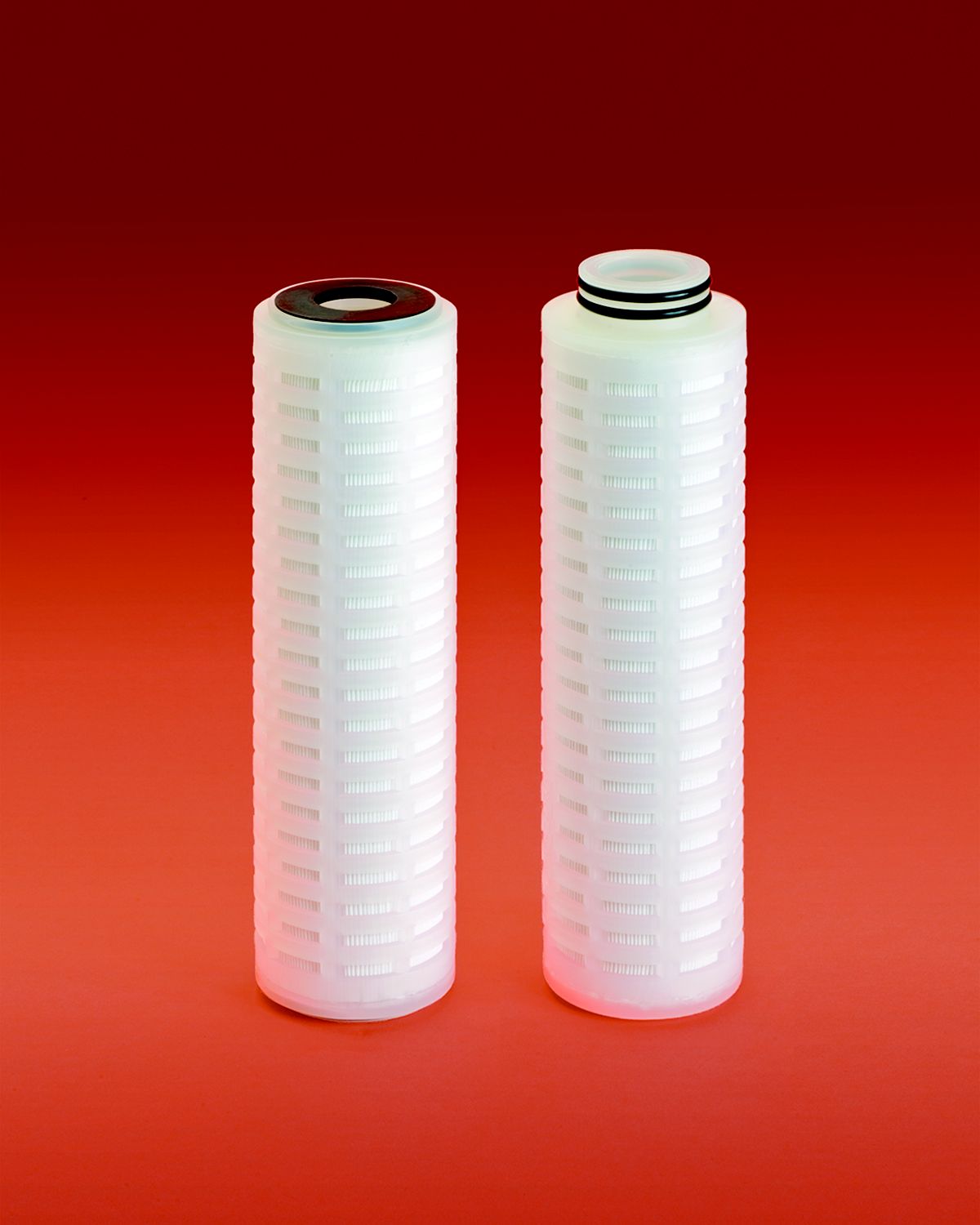

Savana® PS Plus Filters
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
- Industry: Life Sciences, Flat Panel Display, Data Storage, Chemical Manufacturing
- Process: Purificaiton, Facilities, HDD Assembly - Cleaning, Substrate Cleaning, Magnetic Head - Wet Etch and Clean, HGA/HSA Assembly - Cleaning, Chemical, Cleaning, Rework
- Chemistry: Dilute Acids, Dilute Bases, DI Water
- Installation Point: Point of Tool, Bulk
Specifications
Materials: | Membrane: Hydrophilic polyethersulfone |
Support, core, sleeve, endcaps: Polypropylene | |
O-ring: EPDM, FKM, E-FKM | |
Retention ratings: | 0.1, 0.2, 0.45, 1.0 µm |
Maximum operating conditions: | Maximum forward differential pressure: 0.4 MPa (4 bar, 58 psi) @ 20° (68°F), 0.2 MPa (2 bar, 29 PSi) @ 90°C (194°F) |
Maximum reverse differential pressure: 0.2 MPa (2.5 bar, 36 psi) @ 20°C (68°F) | |
Maximum operating temperature: 90°C (194°F) | |

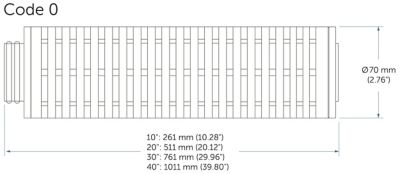

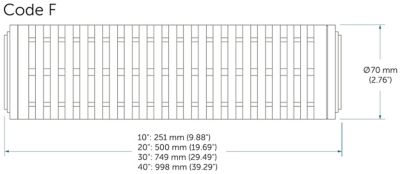

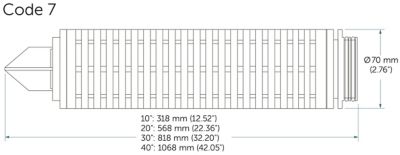

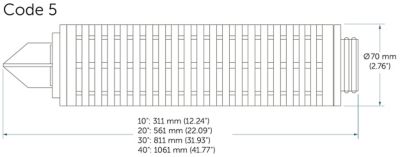

Dimensions (nominal): | Length: 260 mm (CD-O, 10"); 251 mm (CD-F, 10") |
Diameter: 70 mm (CD-0/F) |
