AXF-5Q Graphite

Download Image

Combines high-strength premium graphite with carbon to produce a material that is both strong and biocompatible, making it ideal for internal medical applications.

Proven biocompatibility, safety, and efficacy allows for use in U.S. FDA Class II and III applications.
5 µm (200 µin) particle size specialty graphite
Purity of 5 ppm or less when run through our proprietary purity process
Over 40 years of use in biomedical implant applications
High strength
Precision machinable

Read More Read Less

Specify Your Part

Material Type

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications AXF-5Q Graphite Applications

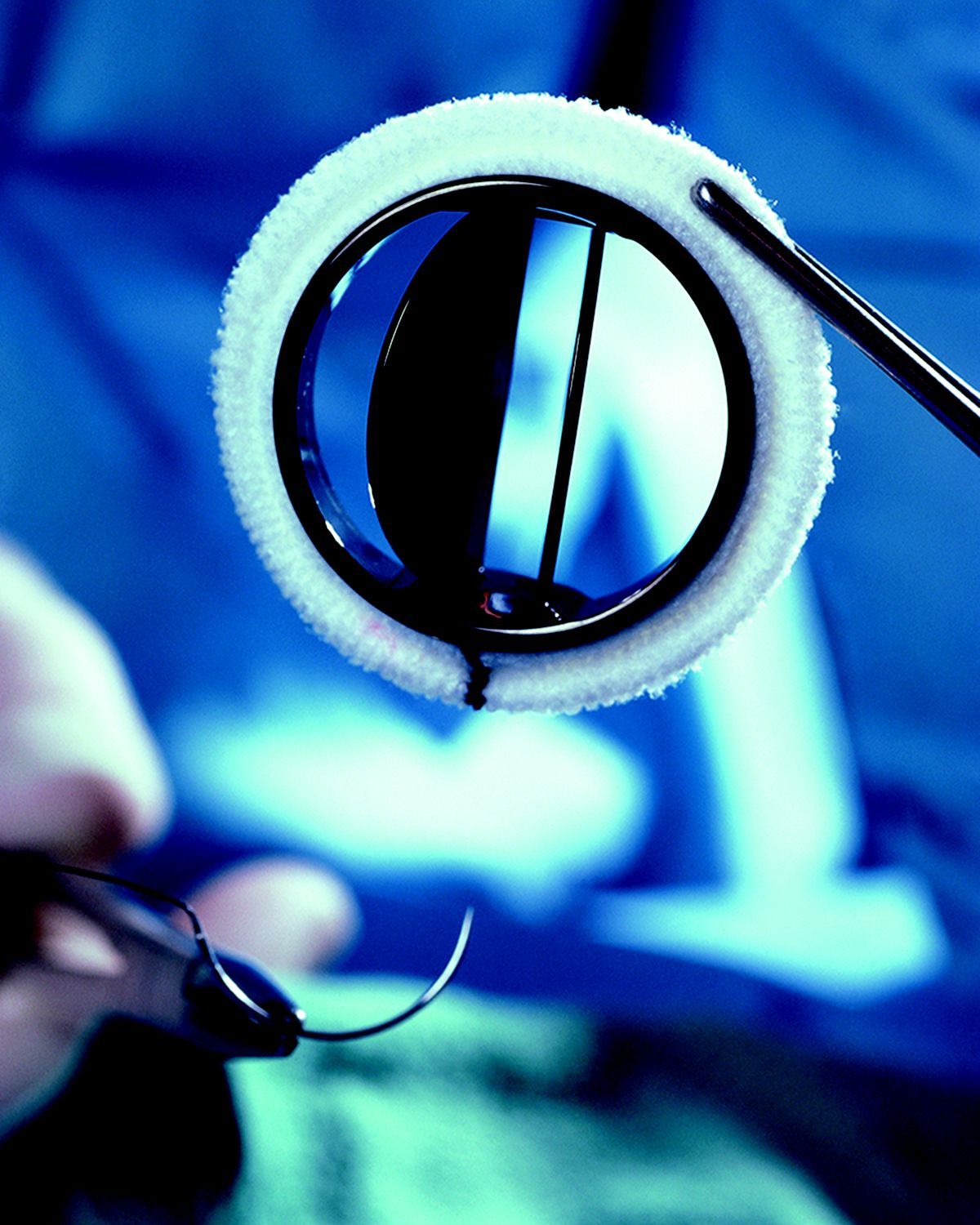

Mechanical heart valves
Orthopedic prosthetics
Cancer treatments

Specifications

Product Specifications

Particle size	5 µm (200 µin)
Pore size	0.8 µm (32 µin)
Total porosity	20% volume
Open porosity	80% of total
Apparent density	1.78 g/cm³ (0.064 lb/in³)
Compressive strength	138 MPa (20,000 psi)
Flexural strength¹	86 MPa (12,500 psi)
Tensile strength²	62 MPa (9,000 psi)
Shore hardness	74
Electrical resistivity	1470 µΩ-cm (580 µΩ-in)
Thermal conductivity	95 W/m-K (55 Btu-ft/hr/ft² °F)
Oxidation threshold³	450°C (840°F)
¹Measured using 4-point bend method.
²Estimated at 70% of flexural strength.
³Temperature that results in 1% wt. loss in 24 hrs. Oxidation threshold increases by approximately 100°C if graphite is purified. Test sample size equals 0.5” x 0.5” x 1.0".

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Aug 23, 2021 Data Sheet AXF-5Q Graphite

399.0 kB

Published Aug 23, 2021 Data Sheet AXF-5Q Graphite - A4

399.0 kB

Part Numbers

AXF-5Q Graphite Part Numbers

Part Number	Material Type
DE-18338	Sample
