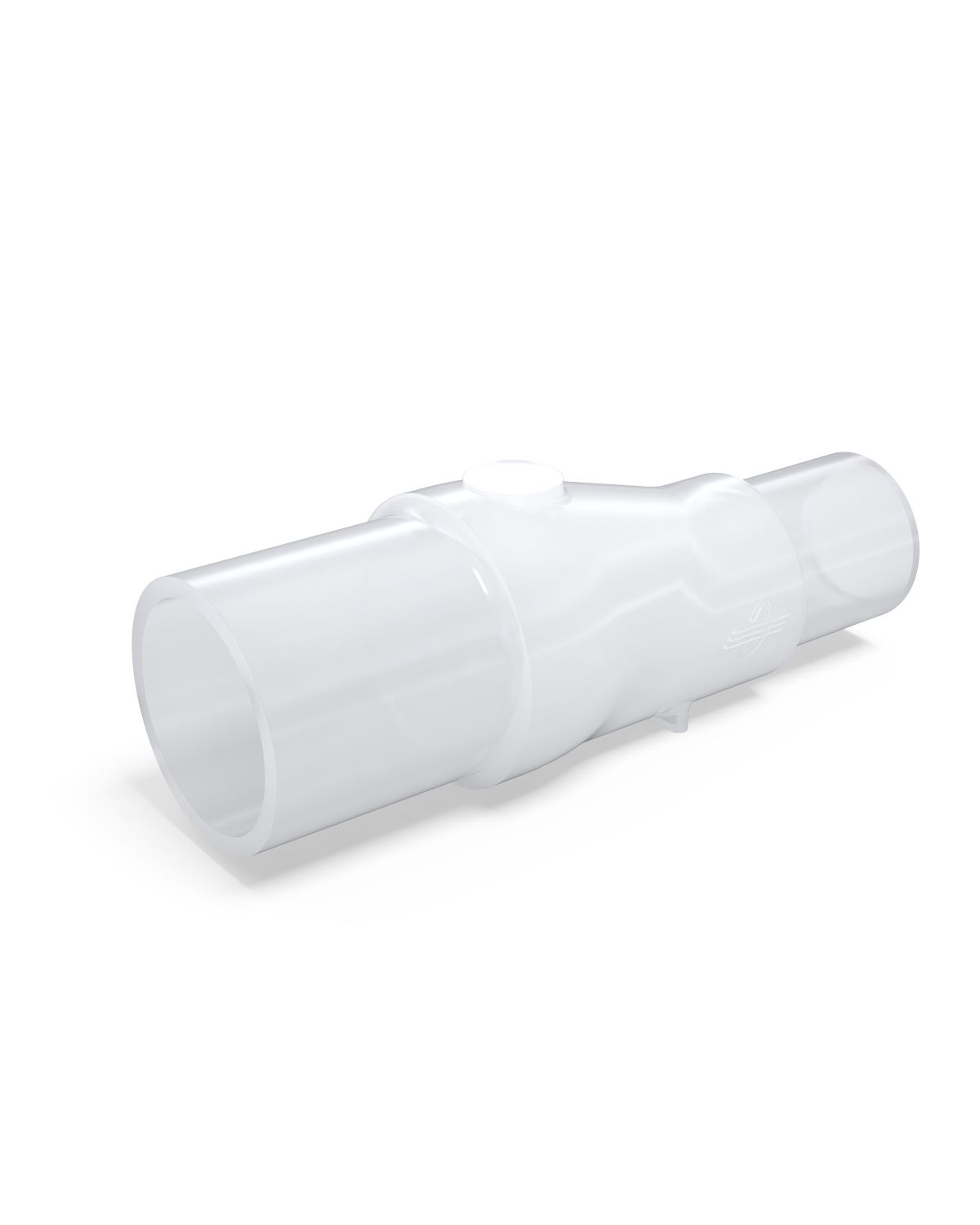

Cynergy® Beadless Weld Eccentric Reducers

Download Image

Cynergy^® beadless weld eccentric reducers can withstand routine SIP and CIP cycles, and are excellent for handling your most corrosive applications.

Constructed from FDA-approved Teflon^® PFA and provide excellent corrosion resistant
Gradual size reduction reduces fluid shear in your sensitive processes
A beadless internal surface enables a smooth fluid flow that continuously sweeps the surface
Designed to meet cGMP drainability requirements
Available in 1/4", 1/2", 3/4", 1", 1 1/2" and 2" sizes

Read More Read Less

Specify Your Part

Leg 1

Leg 2

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Cynergy® Beadless Weld Eccentric Reducers Applications

Ideal for horizontal piping installations
Utility line and process applications
Ideal in bioprocessing, biotechnology and fine chemicals applications using ultrapure water, corrosive chemistries and biotechniques

Specifications

Drawings

Part Number	Leg 1	Leg 2	Dimensions
Part Number	Leg 1	Leg 2	A	B	C	D	E
REW84	1/2" Cynergyweld	1/4" Cynergyweld	2.55" (64.8 mm)	0.370" (9.40 mm)	0.495" (12.57 mm)	0.250" (6.35 mm)	0.375" (9.52 mm)
REW128	3/4" Cynergyweld	1/2" Cynergyweld	3.05" (77.5 mm)	0.620" (15.75 mm)	0.745" (18.92 mm)	0.370" (9.40 mm)	0.495" (12.57 mm)
REW1612	1" Cynergyweld	3/4" Cynergyweld	3.27" (83.1 mm)	0.856" (21.74 mm)	1.006" (25.55 mm)	0.620" (15.75 mm)	0.745" (18.92 mm)
REW2416	1 1/2" Cynergyweld	1" Cynergyweld	4.48" (113.8 mm)	1.356" (34.44 mm)	1.586" (40.28 mm)	0.856" (21.74 mm)	1.006" (25.55 mm)
REW3224	2" Cynergyweld	1 1/2" Cynergyweld	4.61" (117.1 mm)	1.856" (47.14 mm)	2.170" (55.12 mm)	1.356" (34.44 mm)	1.586" (40.28 mm)

Product and Material Lot Traceability

Cynergy products made with Teflon PFA are coded with a lot number. This nondestructive, noncontaminating serial marking allows 100% traceability to a specific material lot, production date and production inspection record.

Injection molded products have a unique two-digit code molded into the body. This code changes with every production lot (see second drawing above).

Teflon^® is a trademark of The Chemours Company FC, LLC used under license by Entegris, Inc.

Performance Data

Autoclavability
Disassemble valves and unclamp connections before autoclaving. 124°C (255°F) is the maximum autoclave temperature.

Vacuum
Full static vacuum capability at 149°C (300°F).

Product Specifications

Materials

All Cynergy products are made from specially chosen resins that meet industry needs for handling highly corrosive environments, saturated steam and cleaning chemicals.

All internal wetted surfaces are made from resins that comply with FDA regulation 21 CFR 177.1550 (perfluorocarbon resins as articles or components of articles intended for use in contact with food). These resins also comply with the criteria in 3-A Standards for Multiple-use Plastic Materials Used as Product Contact Surfaces for Dairy Equipment, Number 20-17, and USP Class VI Biologics Criteria.

External surfaces may also include PEEK and PES materials, high performance, FDA approved engineering grade polymers that are well suited to meet your application requirements.

For complete chemical compatibility and mechanical capabilities, refer to Section 1 of the Cynergy System Technical Guide.

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Jul 1, 2011 Catalog Cynergy® System Technical Guide

3.5 MB

Published Apr 1, 2012 Catalog Cynergy® System Product Catalog

6.3 MB

Videos

Cynergy® Weld-in-Place™ Equipment Demo

Cynergy Weld in Place Equipment Overview

Part Numbers

Cynergy® Beadless Weld Eccentric Reducers Part Numbers

Part Number	Leg 1	Leg 2
REW128	3/4" Cynergy® weld	1/2" Cynergy® weld
REW1612	1" Cynergy® weld	3/4" Cynergy® weld
REW3224	2" Cynergy® weld	1 1/2" Cynergy® weld
