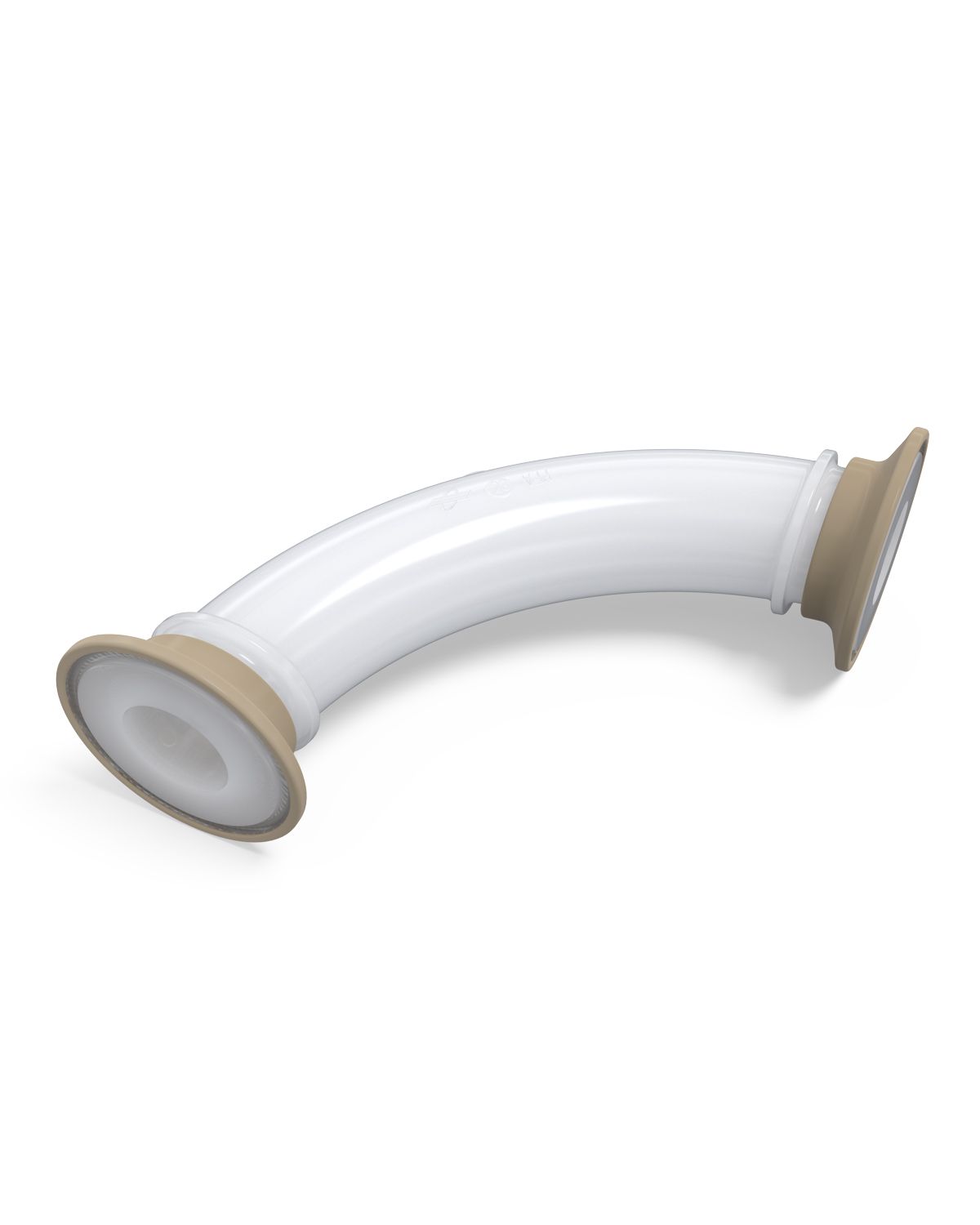

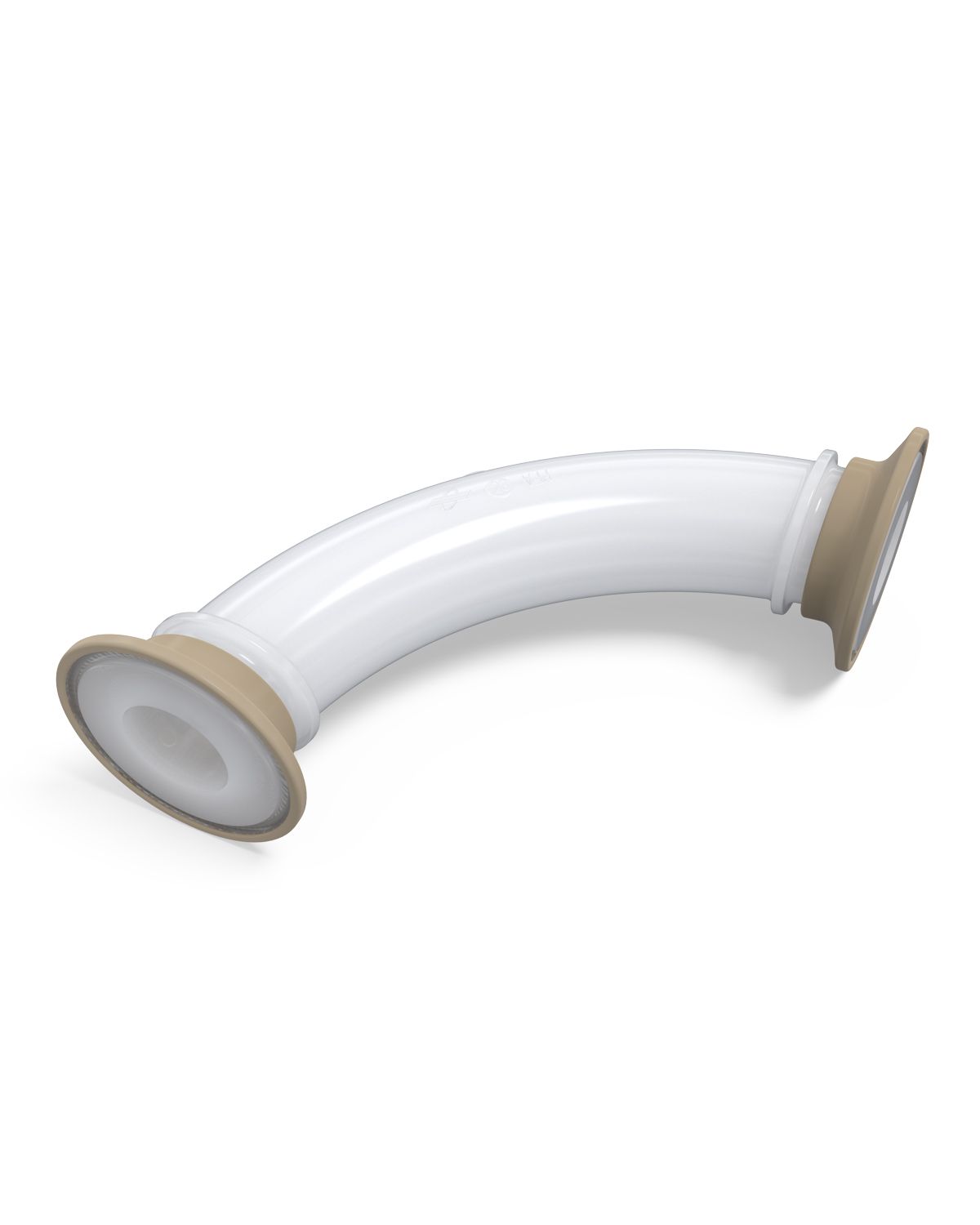

Cynergy® Clamp Sweep Elbows

Download Image

Cynergy^® clamp sweep elbow fittings can withstand regular SIP and CIP cycles, and are compatible with existing stainless steel sanitary clamp connections used in utility line and process applications.

Constructed from FDA-approved Teflon^® PFA and provides excellent corrosion resistance
Long radius elbow minimizes fluid shear for your sensitive processes
End connection is overmolded with PEEK™ material, a high-performance, FDA-approved engineered polymer that provides a durable clamp surface and enhances fitting performance during SIP operations
Available in 1/4", 1/2", 3/4", 1", 1 1/2" and 2" sizes

Read More Read Less

Specify Your Part

Leg 1 and Leg 2

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Cynergy® Clamp Sweep Elbows Applications

Unlike polypropylene and PVDF fittings, can withstand routine steam sterilization without discoloration or embrittlement
Utility line and process applications
Ideal in bioprocessing, biotechnology and fine chemicals applications using ultrapure water, corrosive chemistries and biotechniques

Specifications

Drawings

Part Number	Leg 1	Leg 2	Dimensions
Part Number	Leg 1	Leg 2	A	B	C
E4	1/4" Cynergyclamp	1/4" Cynergyclamp	2.00" (50.8 mm)	0.250" (6.4 mm)	0.984" (25.0 mm)
E8	1/2" Cynergyclamp	1/2" Cynergyclamp	2.00" (50.8 mm)	0.370" (9.4 mm)	0.984" (25.0 mm)
E12	3/4" Cynergyclamp	3/4" Cynergyclamp	4.00" (101.6 mm)	0.620" (15.7 mm)	0.984" (25.0 mm)
E16	1" Cynergyclamp	1" Cynergyclamp	4.00" (101.6 mm)	0.856" (21.7 mm)	1.984" (50.4 mm)
E24	1 1/2" Cynergyclamp	1 1/2" Cynergyclamp	4.00" (101.6 mm)	1.356" (34.4 mm)	1.984" (50.4 mm)
E32	2" Cynergyclamp	2" Cynergyclamp	4.00" (101.6 mm)	1.856" (47.1 mm)	2.516" (63.9 mm)

Product and Material Lot Traceability

Cynergy products made with Teflon PFA are coded with a lot number. This nondestructive, noncontaminating serial marking allows 100% traceability to a specific material lot, production date and production inspection record.

Injection molded products have a unique two-digit code molded into the body. This code changes with every production lot (see second drawing above).

Teflon^® is a trademark of The Chemours Company FC, LLC used under license by Entegris, Inc.

Performance Data

Autoclavability
Disassemble valves and unclamp connections before autoclaving. 124°C (255°F) is the maximum autoclave temperature.

Vacuum
Full static vacuum capability at 149°C (300°F).

Product Specifications

Materials

All Cynergy products are made from specially chosen resins that meet industry needs for handling highly corrosive environments, saturated steam and cleaning chemicals.

All internal wetted surfaces are made from resins that comply with FDA regulation 21 CFR 177.1550 (perfluorocarbon resins as articles or components of articles intended for use in contact with food). These resins also comply with the criteria in 3-A Standards for Multiple-use Plastic Materials Used as Product Contact Surfaces for Dairy Equipment, Number 20-17, and USP Class VI Biologics Criteria.

External surfaces may also include PEEK and PES materials, high performance, FDA approved engineering grade polymers that are well suited to meet your application requirements.

For complete chemical compatibility and mechanical capabilities, refer to Section 1 of the Cynergy System Technical Guide.

Gasket and Clamp Recommendations

Laboratory testing of Cynergy clamp fittings shows performance reliability is dependent on the type of clamp and gasket used. Entegris strongly recommends the use of Tri-Clamp^® two-piece clamps for 1/4", 1/2" and 3/4" sizes, and Tri-Clamp three-piece clamps for 1", 1 1/2" and 2" sizes. Entegris also recommends the use of EPDM sanitary gaskets by Tri-Clover^® or Newman with our Cynergy clamp fittings. In-house testing has been performed on other high performance gasket materials with favorable results. Contact your local Entegris distributor or Entegris, Inc. for a recommendation.

Cynergy Clamp Connection Size	Rubber Fab Tuf-Flex^® PTFE/EPDM Gasket Number	Entegris Part Number for Tuf-Flex Gasket	Tri-Clover EPDM Gasket Part Number	Entegris EPDM Gasket Part Number	Tri-Clamp Clamp Part Number	Entegris Part Number for Tri-Clamp	Clamp Torque in•lbs (N•m)
1/4"	—	—	0-42MP-E-1/4¹	1333-022	13MHHS-3/4-S	01-008141	15 (1.7)
1/2"	A42MPGR-TF-050-E	01-1014718	42MP-E-1/2	01-008136	13MHHS-3/4-S	01-008141	15 (1.7)
3/4"	A42MPGR-TF-075-E	01-1014351	42MP-E-3/4	01-008137	13MHHS-3/4-S	01-008141	15 (1.7)
1"	A40MPGR-TF-100-E	01-034815	40MP-E-1	01-008138	13MHHS-1 1/2-S	01-008142	25 (2.8)
1 1/2"	A40MPGR-TF-150-E	01-034816	40MP-E-1 1/2	01-008139	13MHHS-1 1/2-S	01-008142	25 (2.8)
2"	A40MPGR-TF-200-E	01-034817	40MP-E-2	01-008140	13MHHS-2-S	01-008143	25 (2.8)

¹Newman EPDM Gasket Part Number

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Jul 1, 2011 Catalog Cynergy® System Technical Guide

3.5 MB

Published Apr 1, 2012 Catalog Cynergy® System Product Catalog

6.3 MB

Published Aug 31, 2018 Instruction Sheet Cynergy® PVDF Tube Adapter Assembly Procedures

198.5 kB

Part Numbers

Cynergy® Clamp Sweep Elbows Part Numbers

Part Number	Leg 1 and Leg 2
E16	1" Cynergy® clamp
E24	1 1/2" Cynergy® clamp
E32	2" Cynergy® clamp
E8	1/2" Cynergy® clamp
