Cynergy® PVDF Tube Adapters
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.

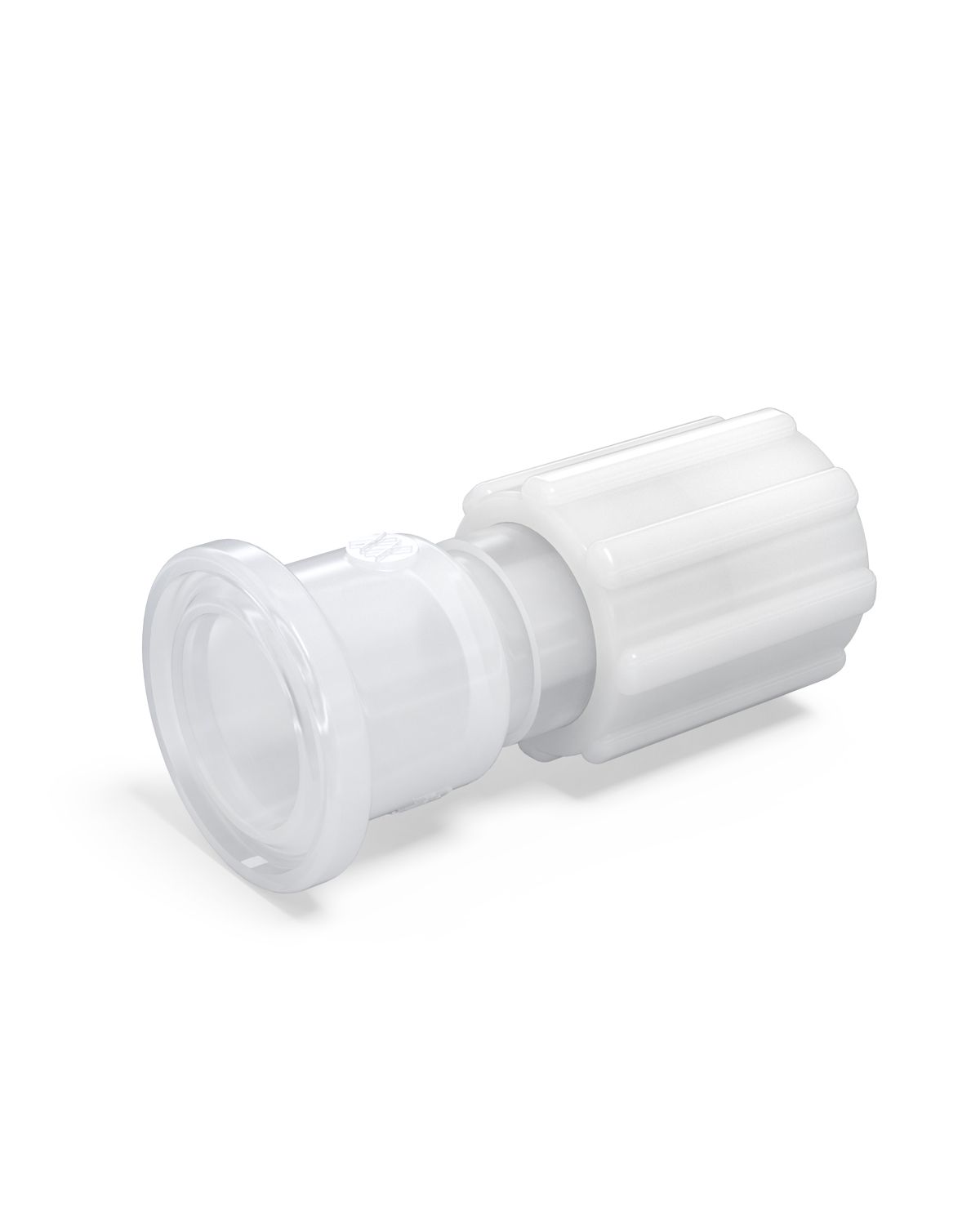

Cynergy PVDF tube adapters provide a clean transition between standard clamp fittings and silicone tubing in the following applications:
- Ambient temperature utility line and process applications
- Ideal in bioprocessing, biotechnology and fine chemicals applications using ultrapure water, corrosive chemistries and biotechniques
Specifications
| Part Number | Leg 1 | Leg 2 | Dimensions | |||
| A | B | C | D | |||
| SA8-4DFN-1 | 1/2" Cynergy clamp | 1/4" Flaretek | 1.89" (48.0 mm) | 0.370" (9.40 mm) | 0.984" (24.99 mm) | 0.13" (3.30 mm) |
| SA8-6DFN-1 | 1/2" Cynergy clamp | 3/8" Flaretek | 2.01" (51.1 mm) | 0.370" (9.40 mm) | 0.984" (24.99 mm) | 0.25" (6.35 mm) |
| SA8-8DFN-1 | 1/2" Cynergy clamp | 1/2" Flaretek | 2.11" (53.6 mm) | 0.370" (9.40 mm) | 0.984" (24.99 mm) | 0.38" (9.65 mm) |
| SA12-4DFN-1 | 3/4" Cynergy clamp | 1/4" Flaretek | 1.89" (48.0 mm) | 0.620" (15.75 mm) | 0.984" (24.99 mm) | 0.13" (3.30 mm) |
| SA12-6DFN-1 | 3/4" Cynergy clamp | 3/8" Flaretek | 2.01" (51.1 mm) | 0.620" (15.75 mm) | 0.984" (24.99 mm) | 0.25" (6.35 mm) |
| SA12-8DFN-1 | 3/4" Cynergy clamp | 1/2" Flaretek | 2.11" (53.6 mm) | 0.620" (15.75 mm) | 0.984" (24.99 mm) | 0.38" (9.65 mm) |
| SA12-12DFN-1 | 3/4" Cynergy clamp | 3/4" Flaretek | 2.28" (57.9 mm) | 0.620" (15.75 mm) | 0.984" (24.99 mm) | 0.63" (16.00 mm) |
Recommended Silicone Tubing Sizes
| Part Number | Silicone Tubing OD | Silicone Tubing ID |
| SA8-4DFN-1 | 0.250" | 0.125" |
| SA8-6DFN-1 | 0.375" | 0.250" |
| SA8-8DFN-1 | 0.500" | 0.375" |
| SA12-4DFN-1 | 0.250" | 0.125" |
| SA12-6DFN-1 | 0.375" | 0.250" |
| SA12-8DFN-1 | 0.500" | 0.375" |
| SA12-12DFN-1 | 0.750" | 0.625" |
Product and Material Lot Traceability
Injection molded products have a unique two-digit code molded into the body. This code changes with every production lot (see second drawing above). This nondestructive, noncontaminating serial marking allows 100% traceability to a specific material lot, production date and production inspection record.
| Maximum pressure: | 6 psig (41 kPa) at room temperature |
| Maximum temperature: | Room temperature |
*The silicone tubing dictates these product specifications. The working pressure of the PVDF tube adapter connection meets or exceeds performance specification of the silicone tubing.
Successfully Opted for software Updates
| Part Number | Leg 1 | Leg 2 |
|---|---|---|
| SA8-8DFN-1 | 1/2" Cynergy® clamp | 1/2" Flaretek® |
