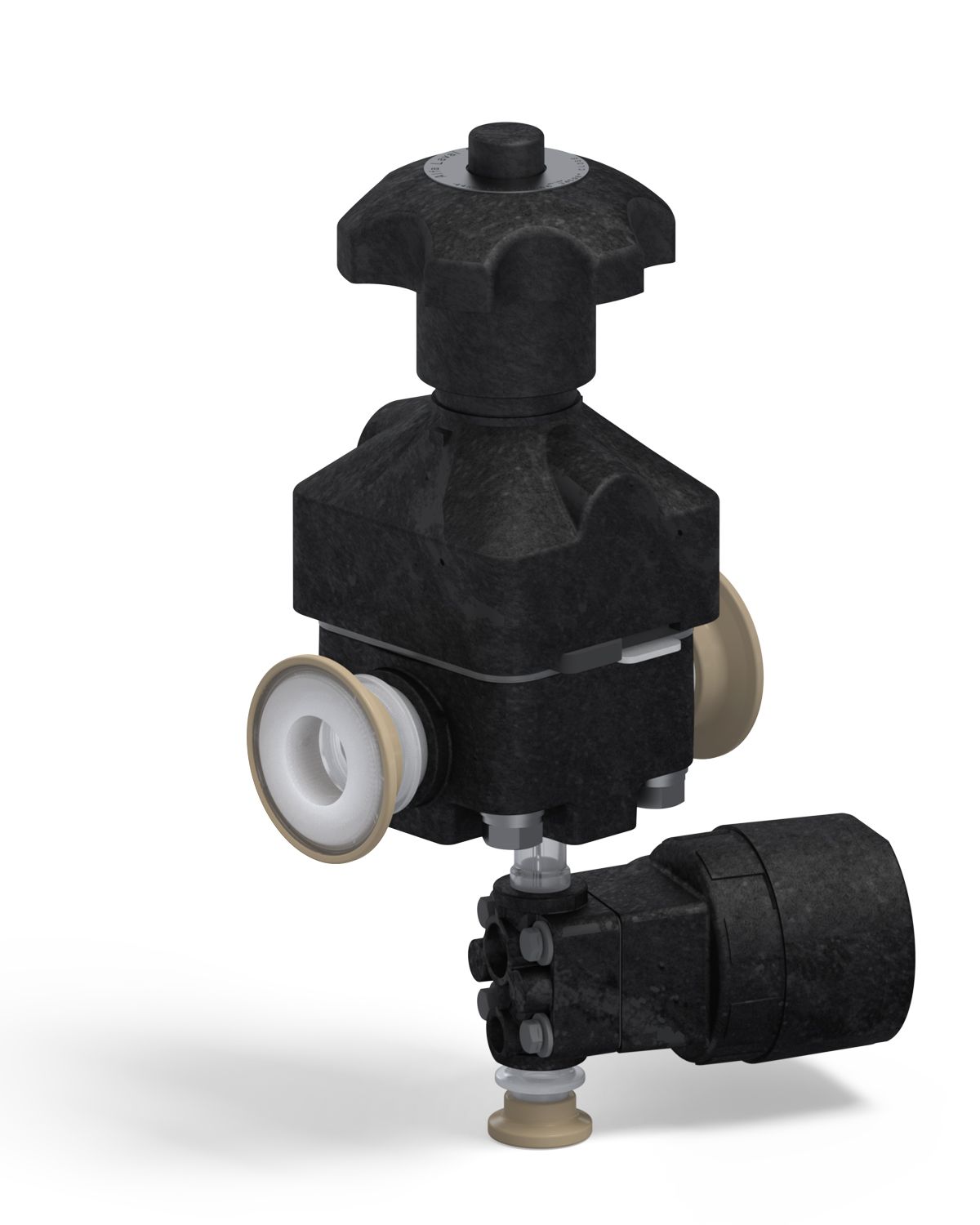

Cynergy® Access Port Assemblies
Interested in Cynergy® Access Port Assemblies?
Contact your Entegris account manager or
Top of page
Reference Materials
Applications
- Utility line and process applications
- Bioprocessing, biotechnology and fine chemicals applications using ultrapure water, corrosive chemistries and biotechniques
- Draining condensate from process lines during SIP operations
Specifications
Valve Size and Port Configuration Options
| Parent Valve Orifice | Port Connection | Access Port Valve Orifice | Port Connection | Dimension A |
| 1" | 1" weld | 1/2" | 1/2" weld | 4.44" (112.8 mm) |
| 1" | 1" weld | 1/2" | 1/2" clamp | 4.29" (109.0 mm) |
| 1" | 1" clamp | 1/2" | 1/2" weld | 4.44" (112.8 mm) |
| 1" | 1" clamp | 1/2" | 1/2" clamp | 4.29" (109.0 mm) |
| 2" | 1 1/2" weld | 1/2" | 1/2" weld | 5.18" (131.6 mm) |
| 2" | 1 1/2" weld | 1/2" | 1/2" clamp | 5.03" (127.8 mm) |
| 2" | 1 1/2" clamp | 1/2" | 1/2" weld | 5.18" (131.6 mm) |
| 2" | 1 1/2" clamp | 1/2" | 1/2" clamp | 5.03" (127.8 mm) |
Autoclavability
Disassemble valves and unclamp connections before autoclaving. 124°C (255°F) is the maximum autoclave temperature.
Vacuum
Full static vacuum capability at 149°C (300°F).
Materials
All Cynergy products are made from specially chosen resins that meet industry needs for handling highly corrosive environments, saturated steam and cleaning chemicals.
All internal wetted surfaces are made from resins that comply with FDA regulation 21 CFR 177.1550 (perfluorocarbon resins as articles or components of articles intended for use in contact with food). These resins also comply with the criteria in 3-A Standards for Multiple-use Plastic Materials Used as Product Contact Surfaces for Dairy Equipment, Number 20-17, and USP Class VI Biologics Criteria.
External surfaces may also include PEEK™ and PES materials, high performance, FDA approved engineering grade polymers that are well suited to meet your application requirements.
For complete chemical compatibility and mechanical capabilities, refer to Section 1 of the Cynergy System Technical Guide.
Gasket and Clamp Recommendations
Laboratory testing of Cynergy clamp fittings shows performance reliability is dependent on the type of clamp and gasket used. Entegris strongly recommends the use of Tri-Clamp® two-piece clamps for 1/4", 1/2" and 3/4" sizes, and Tri-Clamp three-piece clamps for 1", 1 1/2" and 2" sizes. Entegris also recommends the use of EPDM sanitary gaskets by Tri-Clover® or Newman with our Cynergy clamp fittings. In-house testing has been performed on other high performance gasket materials with favorable results. Contact your local Entegris distributor or Entegris, Inc. for a recommendation.
| Cynergy Clamp Connection Size | Rubber Fab Tuf-Flex®PTFE/EPDM Gasket Number | Entegris Part Number for Tuf-Flex Gasket | Tri-Clover EPDM Gasket Part Number | Entegris EPDM Gasket Part Number | Tri-Clamp Clamp Part Number | Entegris Part Number for Tri-Clamp | Clamp Torque in•lbs (N•m) |
| 1/4" | — | — | 0-42MP-E-1/41 | 1333-022 | 13MHHS-3/4-S | 01-008141 | 15 (1.7) |
| 1/2" | A42MPGR-TF-050-E | 01-1014718 | 42MP-E-1/2 | 01-008136 | 13MHHS-3/4-S | 01-008141 | 15 (1.7) |
| 3/4" | A42MPGR-TF-075-E | 01-1014351 | 42MP-E-3/4 | 01-008137 | 13MHHS-3/4-S | 01-008141 | 15 (1.7) |
| 1" | A40MPGR-TF-100-E | 01-034815 | 40MP-E-1 | 01-008138 | 13MHHS-1 1/2-S | 01-008142 | 25 (2.8) |
| 1 1/2" | A40MPGR-TF-150-E | 01-034816 | 40MP-E-1 1/2 | 01-008139 | 13MHHS-1 1/2-S | 01-008142 | 25 (2.8) |
| 2" | A40MPGR-TF-200-E | 01-034817 | 40MP-E-2 | 01-008140 | 13MHHS-2-S | 01-008143 | 25 (2.8) |
1Newman EPDM Gasket Part Number
