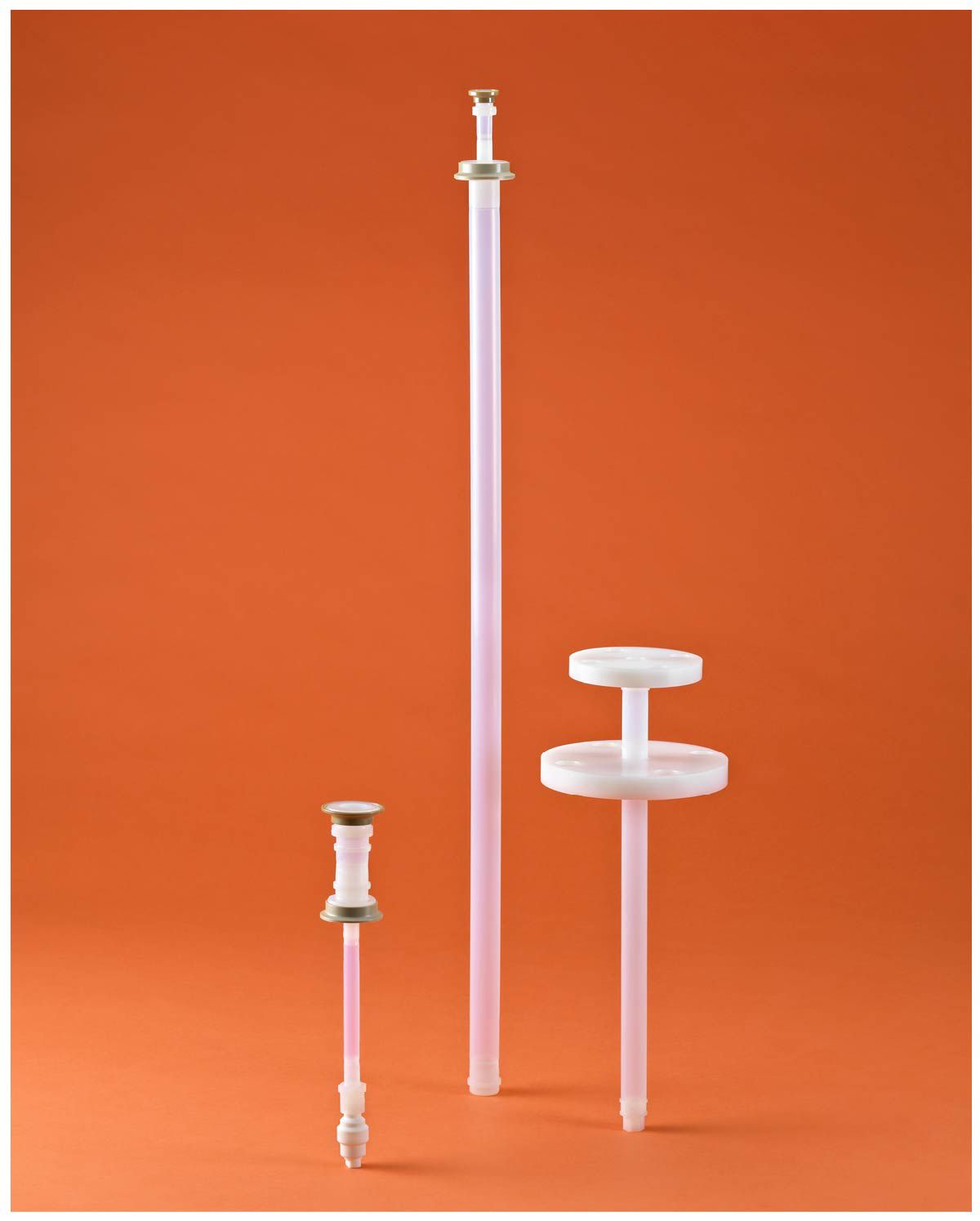

Cynergy® Custom PFA Dip Tubes
As biotech and pharmaceutical markets continue to grow, managing the contaminants generated by the use of stainless steel components in aggressive chemistries remains a significant challenge. This is especially true in connection systems where extractable metals can cause process, product and media contamination.
Our customized PFA dip tubes provide a cost-effective, robust alternative to stainless steel and exotic metal alloy connection systems. In addition to standard design options, we offer a broad range of capabilities to meet your unique design requirements including connection sizes, line sizes and dip tube lengths.
Top of page
Reference Materials
Applications
- Compounding, fermentation, cell culture
- Sparging
- Chemical addition
- Chemical sampling and dispense
- Spray device assemblies
Specifications
| A | Dispense connection: | Style: Sanitary flange, ANSI flange, flare, threaded, other | ||
| Size: 1/2" to 2" depending on connection style | ||||
| B | Vessel connection: | Style: Sanitary flange, ANSI flange, flare, threaded, other | ||
| Size: 1/2" to 8" depending on connection style | ||||
| C | Nominal dip tube size: | 1/2" to 2" tubing, pipe | ||
| D | Dip tube termination: | Threaded, square cut, angle cut, capped, other | ||
| E | Connection length: | Customer specific | ||
| F | Dip tube length: | Customer specific | ||
| G | Joint type (where applicable): | Cynergy weld-in-place™ beadless weld, PureBond® butt weld, threaded, other | ||
Standard options are shown. Contact Entegris for additional design options.
