NOWPak® Bottle Closures
To discuss your specific needs, contact your local Entegris representative.
Don't have an Entegris representative?
Contact UsThank you for requesting a quote. Someone from Entegris will contact you shortly.
Your quote number is {0}.
Custom key codes are available for SmartCap closures. Please contact Entegris for assistance setting up custom key codes.
Software Download
Windows-based interface for NOWTrak TagWriter Software
System requirements: Windows 7 or 10
Current software version NOWTrakCSP V4.2.0.0 (English), NOWTrakCSP V4.2.0.0 (Japanese)
- Photolithography materials
- Copper plating additives
- Materials requiring high-purity packaging or materials that are sensitive to environmental exposure
- Pharmaceutical and biopharmaceutical applications
Specifications

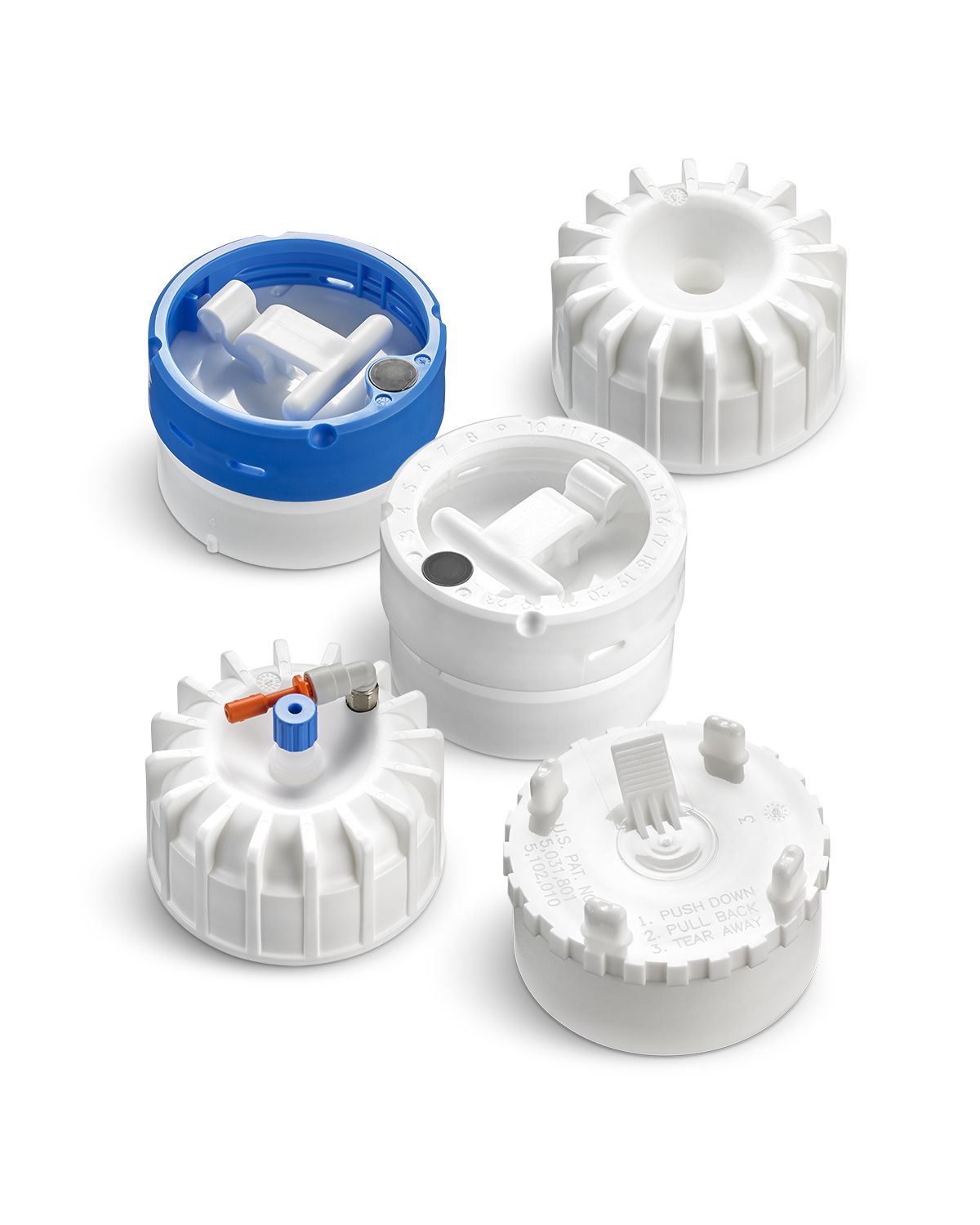

SmartCap, IntelliCap, NC-W1 and NC-W2 Dispense Closures
Dimensions | ||||
SmartCap | IntelliCap | NC-W1 | NC-W2 | |
Outer Diameter: | 72 mm (2.8") | 72 mm (2.8") | 72.9 mm (2.87") | 72.4 mm (2.85") |
Height: | 48 mm (1.9") | 48 mm (1.9") | 47.5 mm (1.87") | 39.1 mm (1.54") |
Specifications | ||||
SmartCap | IntelliCap | NC-W1 | NC-W2 | |
Materials of Construction | ||||
Closure body: | LLDPE, white | LLDPE, white | LLDPE, white | Polypropylene, white |
Breakseal/Seal: | PTFE wetted surface | PTFE wetted surface | PTFE wetted surface | PTFE wetted surface |
Gasket | PE foam | PE foam | PE foam | N/A |
Closure ring: | Polypropylene, white | Polypropylene, blue | N/A | N/A |
RFID memory tag: | N/A | Encapsulated RFID passive memory device | N/A | N/A |
Target: | Nickel plated Neodymium magnet | N/A | N/A | N/A |
Target cap: | Polypropylene, black | Polypropylene, black | N/A | N/A |
Dimensions | |
NCD-AA-AA Dispense Closure | |
Outer Diameter: | 72 mm (2.9") |
Height: | 56 mm (2.2") |
NCD-AA-AA Dispense Closures
Materials of Construction | ||
Wetted | ||
Cap seat adapter: | HDPE | |
Luer-type liquid outlet shipping plug: | Polypropylene | |
Non-wetted | ||
Closure body: | Polypropylene | |
Gas inlet elbow Assembled parts made from: |
PBT/PP/POM/C3604/SUS304/NBR seals | |
Gas inlet plug: | Polypropylene | |
Secondary seal o-ring: | EPDM |
Successfully Opted for software Updates
Using the SmartCap™ and IntelliCap™ Tear Tab Removal Tool
This video shows how to use Entegris' NA-47 tear tab removal tool on a SmartCap or IntelliCap closure for our NOWPak bottle system. Runtime: 00:16
-
NA-47
Tear tab removal tool for SmartCap™ closures
-
NA-33
Torque wrench, 3/8" drive, 150 lbf•in, with 3/8" to 1/2" socket adapter
-
NA-42
Torque tool adapter for SmartCap™ closures, fits 1/2" drive torque wrench
-
NA-02
Torque tool adapter for NC-W1 closures, fits 1/2" drive torque wrench
-
NA-03
Torque tool adapter for NC-W2 closures, fits 1/2" drive torque wrench
-
NA-65-100
SmartCap™ plug for NOWPak® bottle disposal, quantity of 100
-
NA-46-250
Shipping ring for NC-W1, NC-W2, and SmartCap™ closures, quantity of 250
-
NA-110-50
Shipping ring for NCD-AA-AA dispense closure, quantity of 50.
Part Number | Misconnect Prevention | Product Type | Breakseal Type | Quantity | Material | RFID |
---|---|---|---|---|---|---|
NC-W1 | No | Breakseal closure | Laminate construction, PTFE wetted surface | 50 | LLDPE | No |
NC-W2 | No | Removable closure | N/A | 50 | Polypropylene | No |
NCD-AA-AA | No | Dispense closure | N/A | 10 | Polypropylene | No |
SC-23-21-22 | Yes | SmartCap™ closure | Laminate construction, PTFE wetted surface | 25 | LLDPE | No |
SCD-23-21-22 | Yes | SmartCap™ closure | Donut style laminate construction PTFE wetted surface, foam with no adhesive | 25 | LLDPE | No |
SCG-23-21-22 | Yes | SmartCap™ closure | Donut style, PTFE wetted surface with PE non-wetted surface, no foam | 25 | LLDPE | No |
TC-W1-10 | Yes | IntelliCap™ closure | Laminate construction, PTFE wetted surface | 10 | LLDPE | Yes |
TC-W1-50 | Yes | IntelliCap™ closure | Laminate construction, PTFE wetted surface | 50 | LLDPE | Yes |
